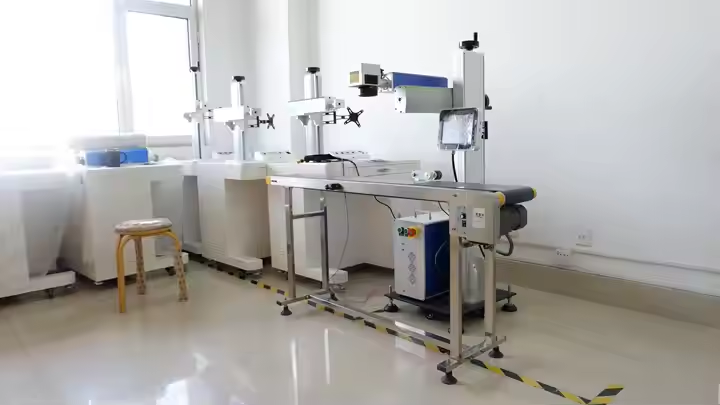

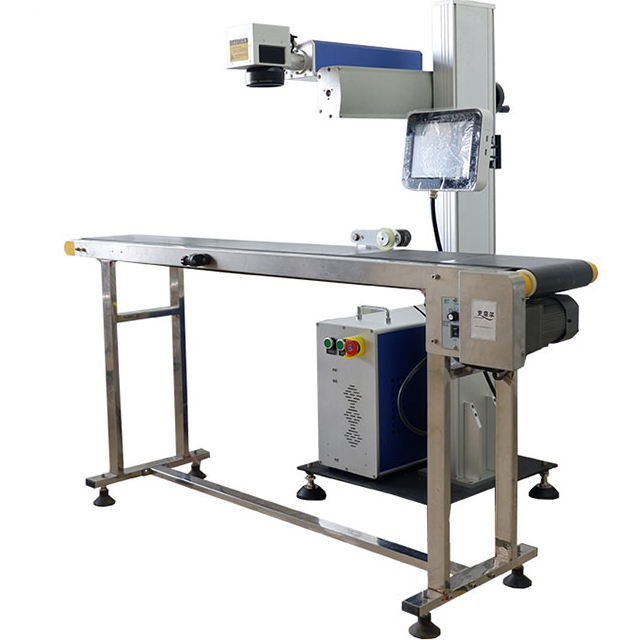

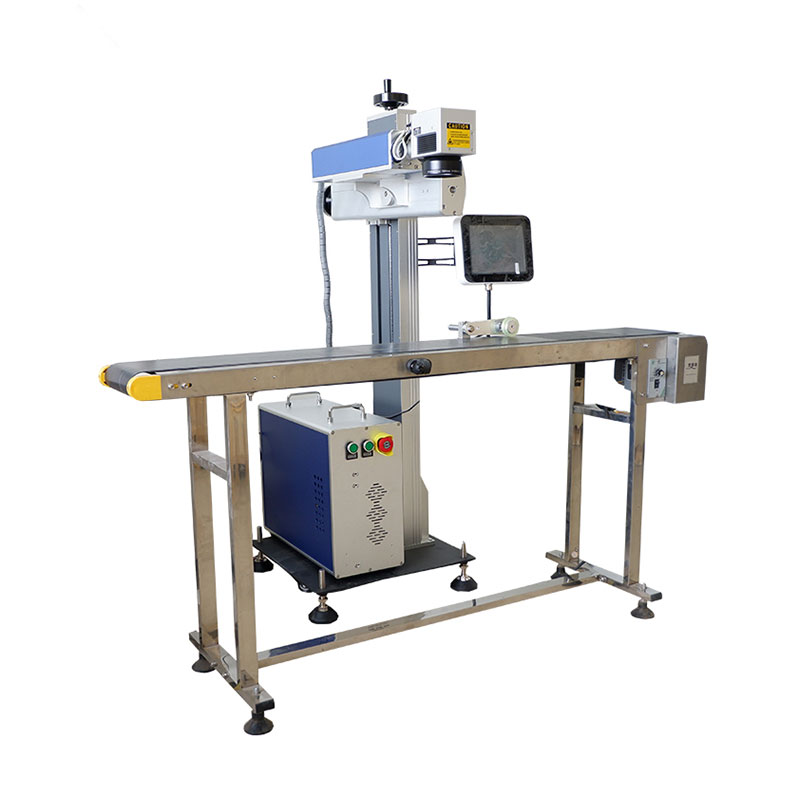

30w Flying Fiber Laser Marking Machine Automatic Engraving Machine

1. Assembly line operation, efficient and easy to operate;
2. The marking process is automated, non-contact, non-toxic, and pollution-free;
3. No consumables required, low usage cost;
4. Special product labeling can play a good role in anti-counterfeiting and anti-counterfeiting;
5. The overall performance of the equipment is stable and has the ability to work continuously for 24 hours.

Fiber optic applications: Currently widely used in the tobacco industry, biopharmaceuticals, alcohol industry, food and beverage, health products, electronics industry, national defense industry, automotive parts, card printing, technology, clothing accessories, building materials and other fields, and showing a rapid upward trend.

Availability:
Quantity:
  • YHF-50

  • YIHAI

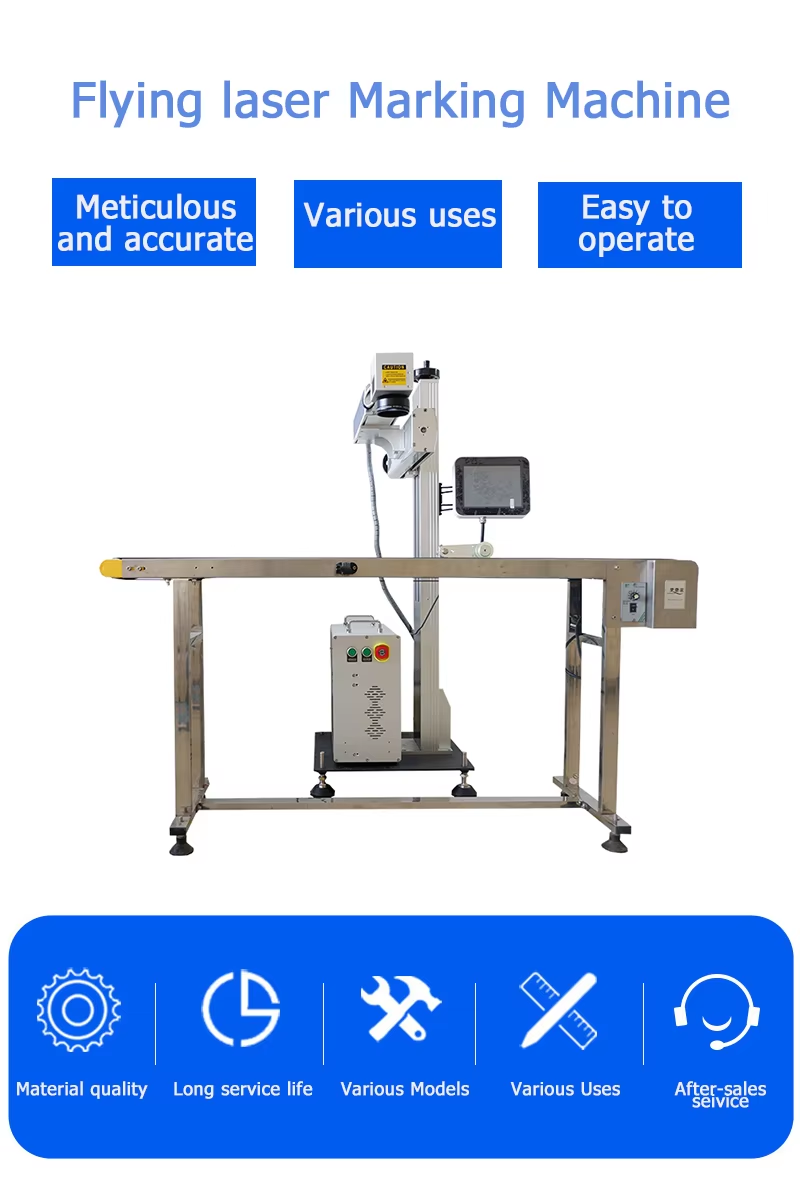

详情图

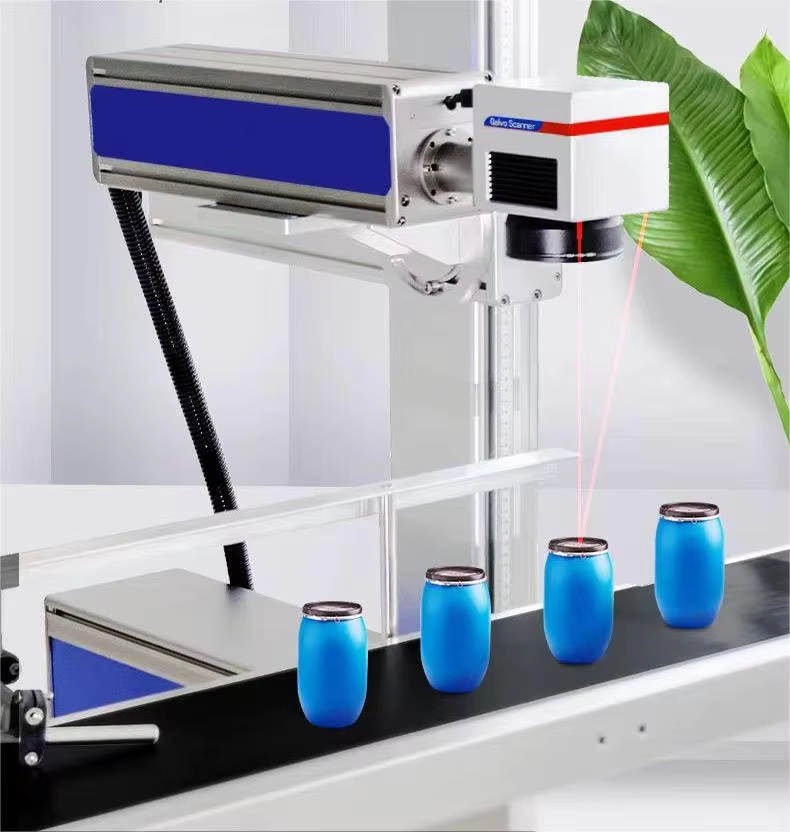

详情图2



Wide range of applications: used in fine marking industry


1.Our laser marking machine adopts the best quality fiber laser source in the world. We have 20w, 30w and 50w for optional.
2.The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.
3.This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light,moveable. It is your best choice.

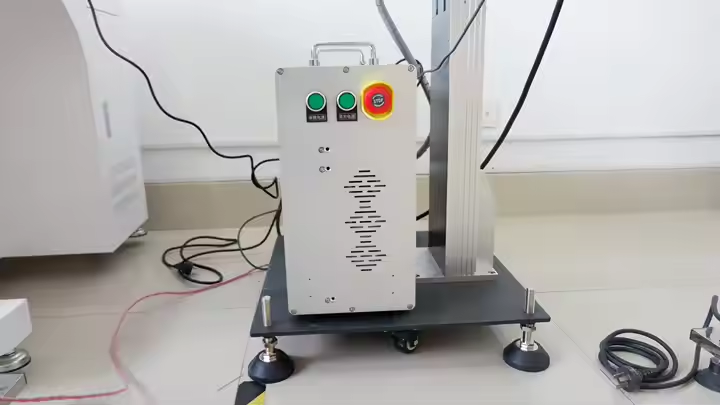

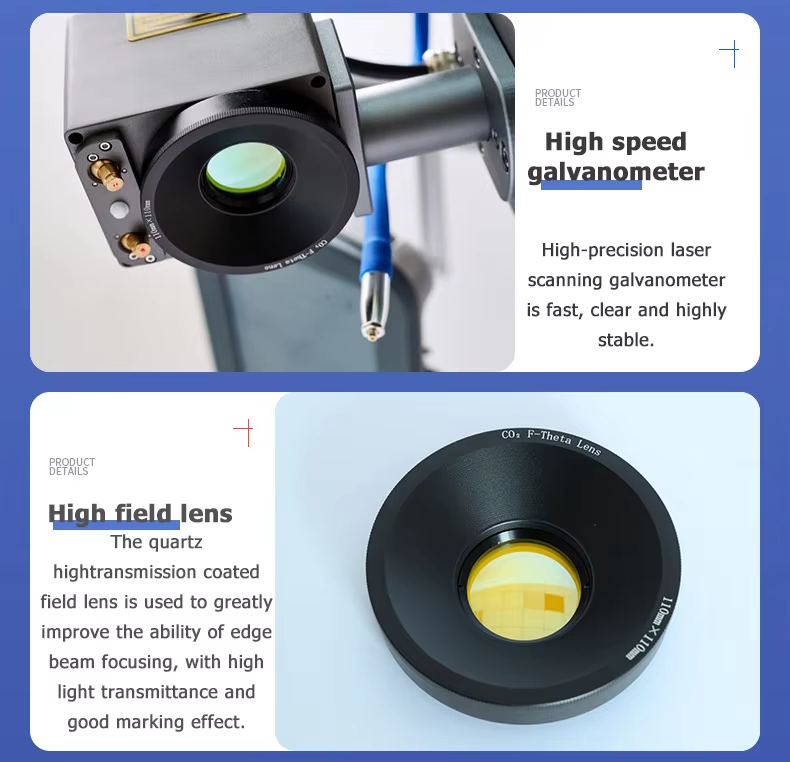

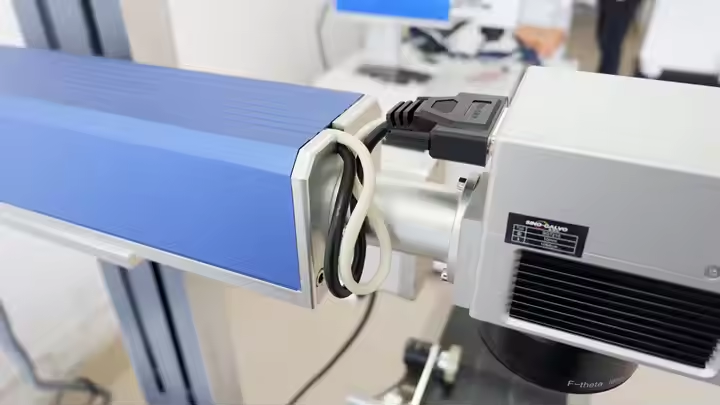

Product Configuration

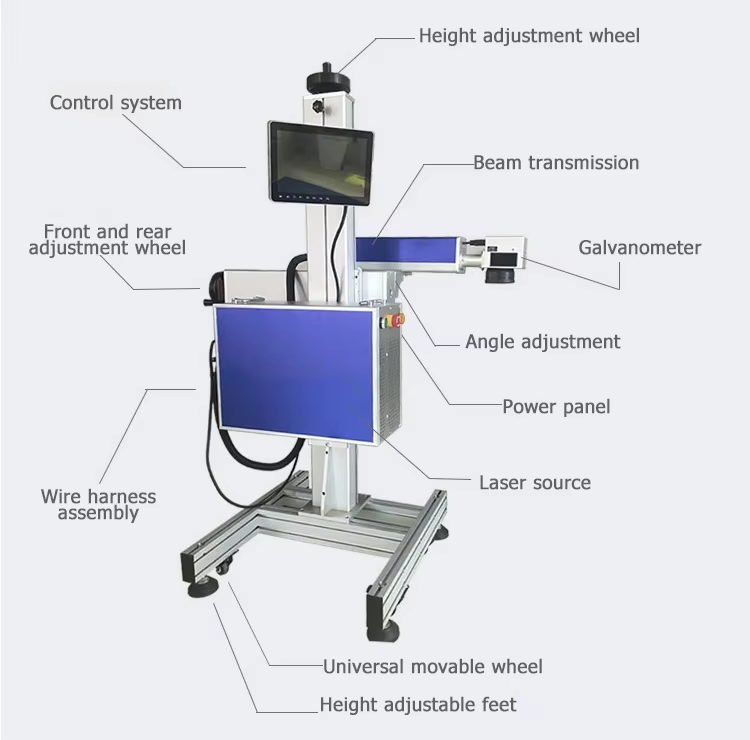

配置4

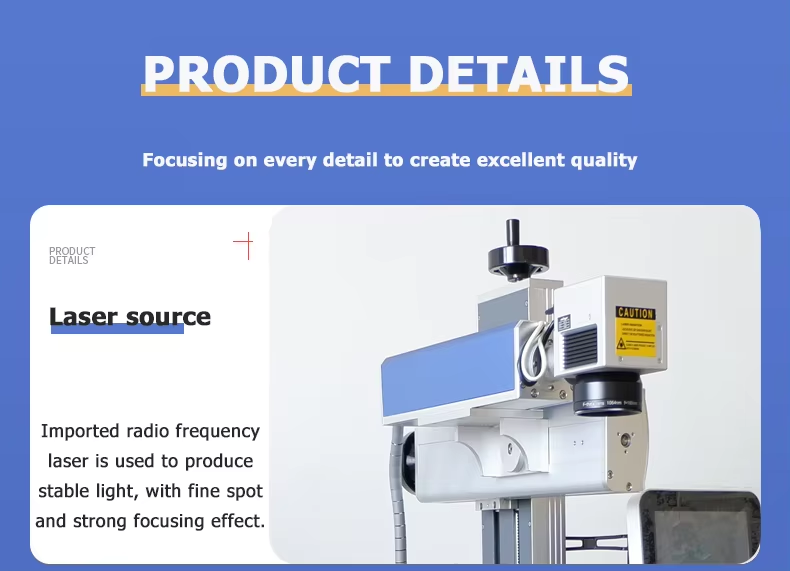

配置

配置2

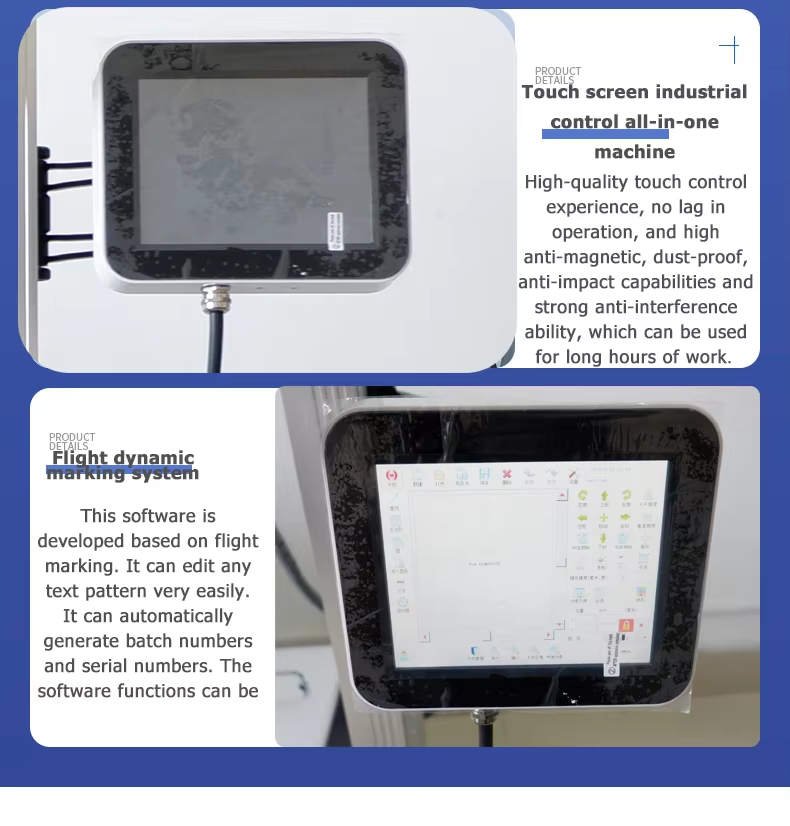

配置3


Fly Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source


  1. Model: Fiber Laser Marking Machine

  2. Applicable materials: Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as PVC,PC, black acrylic.

  3. Applicable industry: They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.




Application Examples



样例


Applications materials

Some non-metallic materials & Special surface treatment:silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink, Plating, Spraying, Coating film.



About our company



证书


微信图片_20240819164852


YH Laser is committed to building trust in the market through the delivery of high-quality products that exceed both international and industry standards. By establishing a robust quality assurance system and implementing comprehensive quality management practices, we ensure that every aspect of production is held to the highest standards. Through strict quality control, continuous process improvement, and strong management capabilities, we guarantee the accuracy and performance of our equipment. All of our products in the Jinan YH Laser lineup are CE certified and have successfully passed FDA registration.



FAQ

Q: What customized services you provided?
A: Yihai is the true manufacturer, we have own factory, therefore we could supply fullOEM and ODM service.

Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and via this method, you could pay by T/T, L/C, Credit Card, etc.

Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.

Q: How long is the delivery time?
A: It depend on the machine mode you require, and which country you from. About the production time,
YH machine only need 15 works day. About the shipping time, it depend on the flight time.







NO.
ITEM
DATE
1
Laser power
20W 30W 50W 100W
2
Laser wavelength
1064nm
3
Beam quality
M2<2
4
Control software
Ezcad (provided)
5
Marking depth
≤0.3mm
6
Cutting depth
≤1mm(30W 50W 100W mark 1-3mins repeatedly then can cut)
7
Marking speed
≤7000mm/s
8
Minimum line width
0.01mm
9
Minimum character
0.5mm
10
Marking Size
110 * 110mm ( 75mm 200mm 300mm optional )
11
Electric power
<500W
12
Working voltage
110/220V ± 10%, 50/60HZ
13
Cooling way
Air cooling
14
Ambient operating temperature
15 ° C - 35 ° C
15
Graphic file format
PLT, DXF, AI, BMP, JPG
16
Machine weight
39
17
Machine size
56L * 55W * 72H (cm)
18
Packing
Plywood box
