How To Determine Whether The Laser Tube Cutting Machine Needs To Be Equipped with A Servo Follow-up Device

Servo follow-up is a key feature in laser tube cutting machines that ensures precise and accurate cutting of materials. In simple terms, it refers to the ability of the machine to adjust its cutting path in real-time based on the position of the material being cut. This is achieved through the use of servo motors that control the movement of the cutting head.

The need for servo follow-up in laser tube cutting machines is crucial, especially when dealing with complex shapes or materials that require high precision. Without this feature, the cutting process may result in errors, leading to wasted materials and time.

As a leading laser cutting machine manufacturer, we understand the importance of servo follow-up in ensuring the quality and efficiency of our machines. Our cutting-edge technology allows for seamless integration of servo motors, providing our customers with the best cutting results possible.

Whether you are looking for a tube laser cutter, pipe machine laser, or tube fiber laser, our machines are equipped with servo follow-up capabilities to meet your specific cutting needs. Trust in our expertise as a top laser cutting machine supplier in China to deliver the precision and reliability you need for your cutting projects.

1. Laser cutting long tubes

When laser cutting a long tube of about 6m in length, if the tube is supported by only two chucks, the tube is easy to sag, and the tube is easy to move during cutting, which affects the cutting accuracy, and loading is also inconvenient

2. Standard device

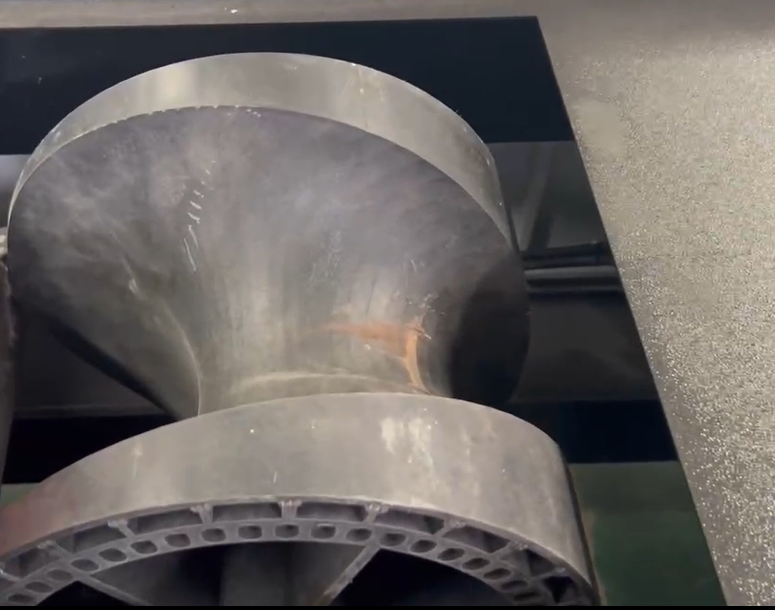

Each professional two-chuck laser tube cutting machine will be equipped with a variable diameter wheel to support the tube. The pneumatic variable diameter wheel supports and stabilizes the tube, and achieves cutting accuracy, reducing the difficulty of loading

Disadvantages: The rising height is fixed, and the position needs to be adjusted manually at different heights

3. Cutting special-shaped tubes

When the tube rotates, the height of the tube will change, and the support frame needs to be adjusted according to the height of the tube. At this time, the variable diameter wheel is not suitable

4. Servo follow-up function

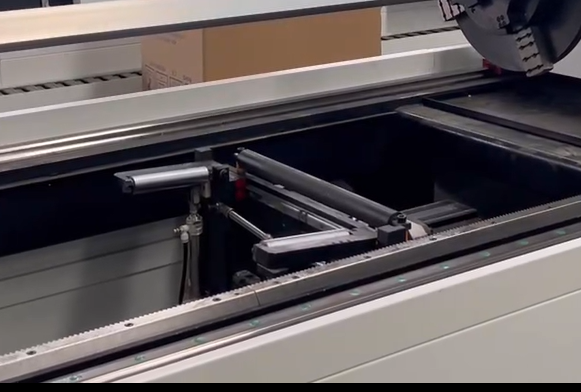

The support height can be automatically changed according to the CNC adjustment, and the tube can be fixed on the left and right, which makes loading more convenient

However, the servo follow-up requires a relatively high configuration, and a servo motor needs to be added to drive the follow-up device, so the price is generally higher. You can choose according to your budget and needs
