What is the effect of laser cutting gas pressure on the cross section?

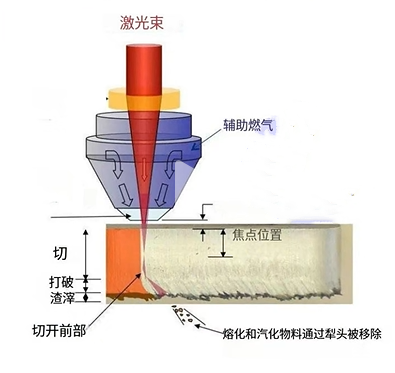

Gas plays a crucial role in the process of laser cutting machines. The main function of gas in laser cutting is to remove slag, which is the melted and vaporized material that is produced during the cutting process. This slag can obstruct the cutting path and affect the quality of the final product, so the gas is used to blow it away and keep the cutting area clean.

In addition to slag removal, gas also acts as a combustion aid or protection. When the laser beam heats the material being cut, a chemical reaction occurs that releases energy and causes the material to vaporize. The gas helps to facilitate this reaction and ensures that it proceeds smoothly and efficiently. It also provides a protective barrier between the material and the laser, preventing any potential damage or contamination.

In a recent study conducted by laser cutting machine experts, it has been discovered that setting the gas pressure too high can have detrimental effects on the cutting process. When the gas pressure is not adjusted properly, eddy currents can appear on the surface of the material being cut. These eddy currents weaken the ability to remove the molten material, resulting in a wider slit and a very rough cut surface.

Laser cutting machines are known for their precision and efficiency, but even the most advanced machines can be affected by improper settings. In order to avoid the formation of eddy currents and ensure a clean cut, operators must carefully monitor and adjust the gas pressure according to the material being cut.

The study highlights the importance of proper maintenance and operation of laser cutting machines. By understanding the impact of gas pressure on the cutting process, operators can optimize their machines for maximum performance and efficiency.

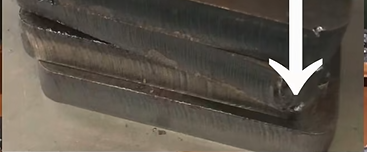

it was found that the gas pressure was set too low, causing the slag to not be completely blown away. This resulted in the lower surface of the material adhering to the slag, leading to subpar cutting results. It is crucial to ensure that the gas pressure is properly adjusted in laser cutting machines to avoid such issues. Proper maintenance and operation of these machines are essential to achieve high-quality cuts. Remember, precision is key when it comes to using laser cutting technology. Stay informed and stay safe when operating these powerful machines.

What should be paid attention to when laser cutting encounters high-reflective materials?

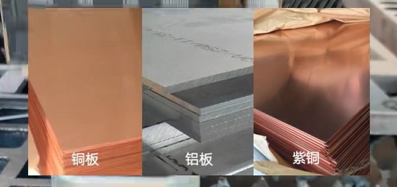

Common high-reflective materials such as aluminum, brass, and copper can pose challenges when using a laser cutting machine. These materials have a low laser absorption rate, which means that the heat absorbed by the material quickly diffuses back into the laser. This can cause the laser to burn out, leading to damage and potentially costly repairs.

To address this issue, several key considerations should be kept in mind:

1. Stay within the power cutting range recommended for high-reflective materials. Avoid extreme power settings and instead opt for a moderate power level. Slowing down the cutting speed can also help ensure that the material is properly perforated and cut through.

2. If the laser is unable to penetrate the material or if an alarm is triggered during cutting, stop the operation immediately. Consult with the manufacturer to determine the cause of the issue before resuming operation.

3. Use gas that has been tested and proven effective for cutting high-reflective materials. Avoid experimenting with different gases, as the cost of trial and error can be high. Stick to conventional gases that have been shown to work well with these materials.

By following these guidelines and taking precautions when cutting high-reflective materials, you can avoid damage to your laser cutting machine and ensure successful cutting operations.
