How Can Stainless Steel Be Laser Cut Using Film?

In the world of stainless steel cutting, there are two types of films that are commonly used - ordinary film and laser film. Laser film is preferred for its strong adhesion and ease of cutting, while ordinary film tends to lack adhesion and can cause bulging, which in turn affects the quality of the cutting.

When it comes to removing the film during the cutting process, it is important to first scan the surface of the stainless steel to ensure that the film is properly set up before cutting. Setting the peak power and duty cycle to 30-40 is recommended, with about 500w being converted into a percentage. The cutting speed for film removal should be set between 10-15 meters, with the nozzle height at 8-10 and the focus position set at 0. By raising the nozzle position and focus position, the width of the film scanning can be widened to ensure a clean and precise cut.

If the ordinary film has poor adhesion, it is advisable to either remove it completely or cut it from the reverse side to avoid any issues during the cutting process.

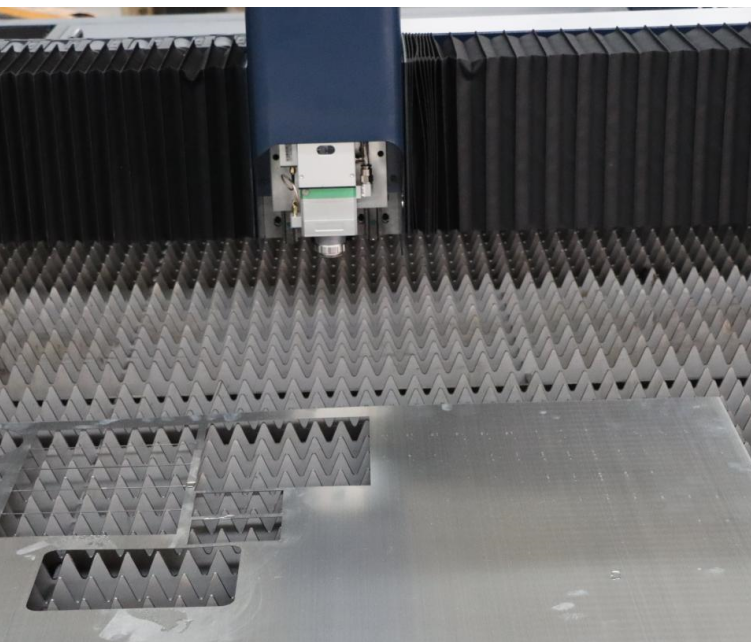

When it comes to choosing a CNC cutting machine for metal, the laser metal cutting machine is one of the most popular choices. With its ability to cut through stainless steel with precision and speed, the fiber laser cutting machine for metal is a top choice among manufacturers in China and around the world. By working with reputable laser cutting machine manufacturers in China, businesses can ensure that they are getting a high-quality machine that meets their needs.

In conclusion, when it comes to cutting stainless steel with film, it is important to consider the type of film being used and to set the cutting parameters accordingly. By following these guidelines and working with trusted manufacturers, businesses can ensure that they are producing high-quality cuts every time.
