Oxide‑free cut surfaces on stainless steel require nitrogen purity ≥99.995% (Grade 4.5), gas pressure 15–25 bar (depending on thickness), a nozzle diameter of 0.6–0.8 × material thickness, and a cutting speed window that is 30–40% slower than oxygen cutting of carbon steel. The physical mechanism is purely inert gas shielding: nitrogen displaces atmospheric oxygen, preventing the formation of Cr₂O₃ and Fe₃O₄. A cut that is silver or bright white indicates an oxide layer <10 nm; a yellow or blue cut indicates oxygen contamination (>100 ppm O₂ in the nitrogen). The most common cause of discoloration is not low purity but incorrect nozzle standoff or pressure, which creates turbulence that entrains air.

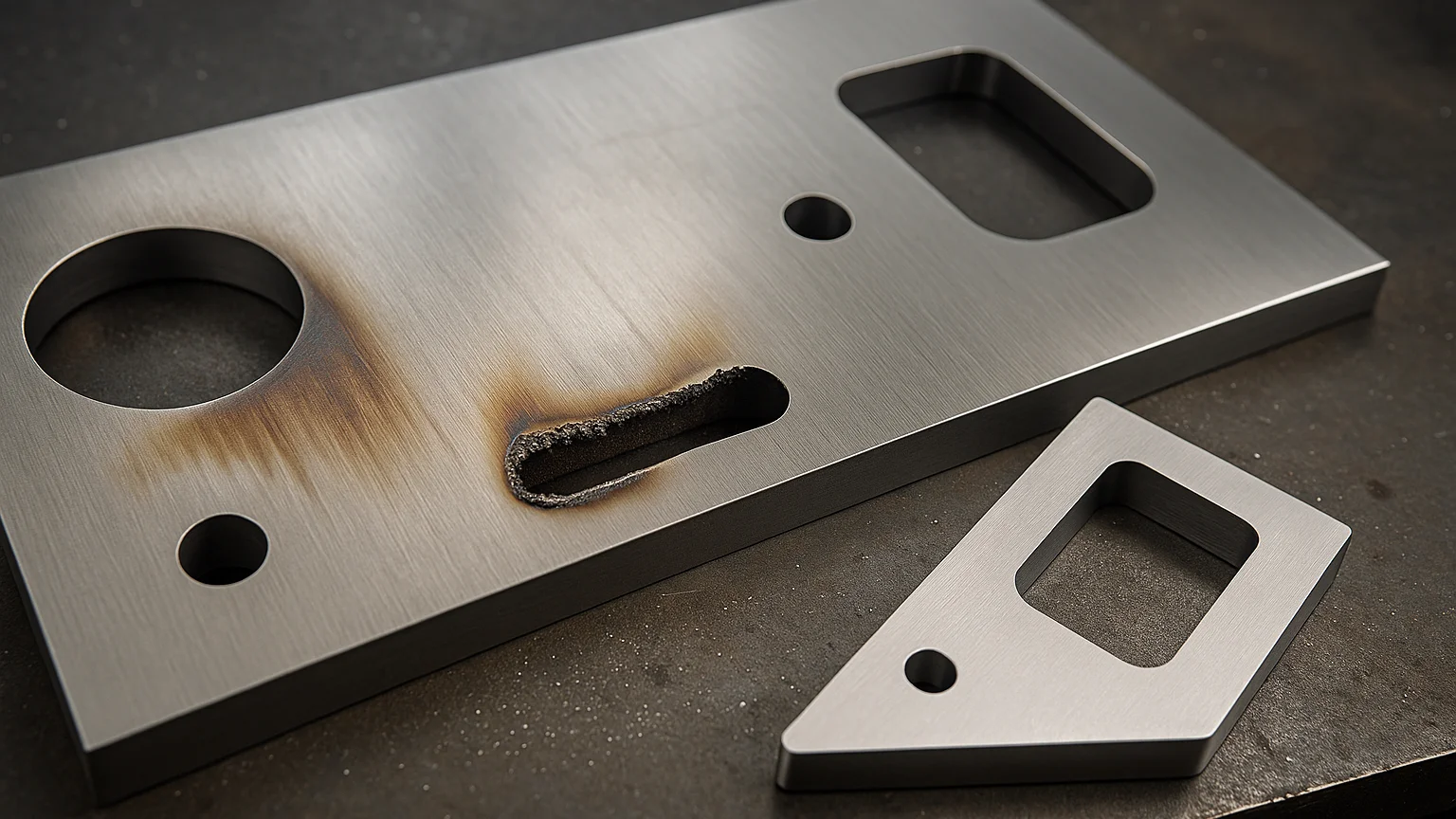

You cut 2 mm 304 stainless steel with nitrogen at 12 bar. The edge is bright silver. You switch to a new nitrogen cylinder – the cut turns blue. The supplier insists the purity is 99.995%. You check the nozzle: it has a slight spatter deposit. You clean the nozzle, and the cut returns to silver. The problem was not the gas purity; it was the nozzle disrupting the gas jet, allowing air to mix with the nitrogen.
Achieving a true oxide‑free, silver cut on stainless steel requires mastering five interdependent parameters: nitrogen purity, gas pressure, nozzle condition and standoff, focus position, and cutting speed. This article provides the quantitative relationships and field‑proven procedures to consistently produce bright, corrosion‑resistant edges.
Stainless steel contains chromium (≥10.5%). When heated in the presence of oxygen, chromium oxide (Cr₂O₃) forms, which is dark green to black. Iron also oxidizes to Fe₂O₃ (red‑brown) and Fe₃O₄ (black). The color sequence with increasing oxidation is:
Color | Dominant oxide | Oxide thickness (nm) | Oxygen exposure |
|---|---|---|---|
Silver / bright | None or very thin FeO | <5 | Excellent (no oxidation) |
Light straw | Fe₂O₃ | 5–15 | Very low |
Dark straw / brown | Fe₂O₃ + Fe₃O₄ | 15–30 | Low |
Blue | Fe₃O₄ | 30–50 | Moderate |
Dark gray/black | Cr₂O₃ + Fe₃O₄ | >80 | High (unacceptable) |
In nitrogen cutting, the assist gas is inert. It does not react with the metal. Its only job is to displace atmospheric oxygen from the kerf. If the nitrogen jet is coherent and properly positioned, the oxygen partial pressure at the cut front is <100 ppm, and no oxides form. If air is entrained, oxidation occurs immediately.
The Yihai manual provides a purity table (Section 5.1.4) for nitrogen cutting of stainless steel:
Gas grade | Purity (%) | Oxygen content (ppm) | Water content (ppm) | Cut section quality |
|---|---|---|---|---|
2.8 | ≥99.8 | ≤500 | ≤20 | No oxidation, micro yellow at the cross-section |
3.5 | ≥99.95 | ≤100 | ≤10 | Non‑oxidized, no gloss |
4.5 | ≥99.995 | ≤10 | ≤5 | No oxidation, bright cross-section |
5.0 | ≥99.999 | ≤3 | ≤5 | Fully non‑oxidized, glossy surface |
Key insight: Grade 4.5 (99.995%) is the minimum for a true silver, oxide‑free cut on austenitic stainless steel (304, 316). Grade 3.5 (99.95%) may produce a cut that is “non‑oxidized” but lacks gloss – acceptable for non‑cosmetic parts. Grade 2.8 (99.8%) will produce a yellow or blue cut due to the 500 ppm oxygen content.
Practical check: If you cannot obtain a certificate for Grade 4.5, request Grade 5.0 (99.999%). The cost difference is small, and the margin is safer.
Even with pure nitrogen, if the gas jet is turbulent or has a wide angle, air will be entrained. The Yihai manual (Section 5.1.2) emphasizes nozzle condition and coaxiality.
Higher pressure increases gas velocity and momentum, improving ejection of molten material. However, excessive pressure causes turbulence that draws in air.
Thickness (mm) | Recommended nitrogen pressure (bar) | Nozzle diameter (mm) | Notes |
|---|---|---|---|
1 | 10–12 | 0.8–1.0 | High velocity, small nozzle |
2 | 12–15 | 1.0–1.2 | |
3 | 15–18 | 1.2–1.5 | |
4 | 18–20 | 1.5–1.8 | |
5 | 20–22 | 1.8–2.0 | |
6 | 22–25 | 2.0–2.5 |
Rule of thumb: For a given nozzle, the pressure should be set so that the gas jet is just below the point of audible turbulence. If you hear a hissing or whistling sound from the nozzle, the flow is turbulent – reduce pressure by 2–3 bar.
A nozzle with spatter buildup (even 0.2 mm of deposit) creates asymmetric flow. The Yihai manual describes the tape test: fire a low‑power pulse through the nozzle with tape over the exit. The burn mark should be perfectly centered. If off‑center, adjust nozzle position.
Effect of nozzle condition on cut color:
Nozzle condition | Cut color | Cause |
|---|---|---|
Clean, centered | Silver | Laminar jet, no air entrainment |
Slight spatter (one side) | Blue on one side, silver on other | Asymmetric jet, air entrained on the rough side |
Heavy spatter | Dark gray | Severe turbulence, air mixing |
Out‑of‑round orifice | Yellow to blue | Jet coherence lost |
Maintenance: Clean the nozzle with a brass brush daily. Replace the nozzle every 80–120 cutting hours or immediately if the orifice is visibly deformed.
The distance from the nozzle tip to the workpiece affects gas jet coherence. For most fiber laser cutting heads, the optimal standoff is 0.5–1.5 mm.
Standoff (mm) | Effect on shielding | Recommended |
|---|---|---|
<0.5 | Gas jet impinges, creates back pressure | Not recommended (risk of nozzle collision) |
0.5–1.0 | Very good, high velocity | Thin sheets (≤2 mm) |
1.0–1.5 | Optimal for most thicknesses | Yes |
1.5–2.0 | Acceptable, slight jet divergence | Thick sheets (>6 mm) |
>2.0 | Jet diverges, air entrainment | No |
For stainless steel cutting with nitrogen, the focus should be slightly negative (below the surface) to provide a wider kerf at the top and a narrower beam at the bottom. This allows the nitrogen jet to penetrate.
Thickness (mm) | Recommended focus offset (mm below surface) |
|---|---|
1 | –0.5 |
2 | –0.5 to –1.0 |
3 | –1.0 to –1.5 |
4 | –1.5 to –2.0 |
5–6 | –2.0 to –3.0 |
Effect of focus on cut color:
Focus too high (positive): Beam diverges at bottom, insufficient energy to melt through, incomplete cut or dross.
Focus too low (excessively negative): Kerf too wide, gas jet loses coherence, oxidation may occur at the edges.
Perform a focus ramp test (cut lines at different focus offsets) to find the offset that gives the brightest cut edge.
Cutting speed for stainless steel with nitrogen is significantly lower than for carbon steel with oxygen. The speed window is also narrower.
Speed guidelines for 2 mm 304 stainless steel (2 kW fiber laser, 1.2 mm nozzle, 15 bar N₂):
Speed (m/min) | Cut edge | Dross | Verdict |
|---|---|---|---|
5.0 | Incomplete cut | None | Too fast |
4.5 | Silver, fine striations | None | Acceptable (fast) |
4.0 | Bright silver, smooth | None | Optimal |
3.5 | Silver, slight roughness | None | Acceptable (slow) |
3.0 | Light straw, rough | Minimal | Too slow |
General speed formula (starting point):
v≈T2.5×P
Where v = speed (m/min), P = laser power (kW), T = thickness (mm). For 2 kW, 2 mm: v≈(2.5×2)/2=2.5 m/min. This is a conservative starting point. Adjust upward until the edge just begins to discolor, then reduce by 10%.
A clean, oxide‑free surface is easier to cut without discoloration. Mill scale, rust, or oil residues absorb laser energy unevenly and can cause localized oxidation.
Pre‑cut cleaning recommendations:
For stainless steel with mill scale: Use a chemical pickle or mechanical abrasion (fine sanding) on the cut path.
For oil or grease: Wipe with acetone before cutting.
For thin protective film (PVC): Remove film from the cut path; the laser can cut through film but may leave residue.
The Yihai manual (Section 5.1.4) notes that surface quality affects cutting: “The surface quality of the plate (such as rust, foreign matter, etc.)” influences the process.
Discoloration | Most likely cause | Corrective action |
|---|---|---|
Light yellow (straw) | Slight air entrainment, low gas purity | Increase pressure by 2 bar; check nozzle for spatter |
Blue | Moderate air entrainment, turbulent jet | Reduce pressure (if turbulent); check nozzle centering; reduce standoff |
Dark gray / black | Severe air entrainment, or nitrogen purity <99.9% | Replace nozzle; check gas certificate; reduce standoff to 1 mm |
Intermittent discoloration along cut | Nozzle spatter buildup or gas pressure fluctuation | Clean nozzle; check regulator for stable output |
One side blue, one side silver | Nozzle off‑center | Perform tape test and adjust nozzle |
Discoloration only at start of cut | Piercing parameter too hot | Reduce pierce power or increase pierce time; use nitrogen for piercing |
Verify nitrogen purity – Obtain certificate for Grade 4.5 or higher.
Install a clean, undamaged nozzle of the correct diameter (0.6–0.8 × thickness).
Set standoff to 1.0–1.5 mm.
Set focus offset to –1.0 mm for 2 mm material (adjust by thickness).
Set gas pressure to the recommended value from the table.
Run a speed ramp test from 50% to 120% of the estimated optimal speed.
Examine the cut edge – select the highest speed that produces a silver, dross‑free edge.
Check nozzle centering with tape test. Adjust if necessary.
Verify cut quality on a production part – inspect for color and surface finish.
Document parameters in the machine’s process library (XC3000 or HypCut).
Myth | Reality |
|---|---|
Higher nitrogen pressure always gives better shielding | Excessive pressure causes turbulence, entraining air. There is an optimum. |
Any grade of nitrogen works for stainless | Grade 4.5 (99.995%) is the minimum for a silver cut. Lower grades cause discoloration. |
Discoloration means the gas is impure | Often it is nozzle condition or standoff, not gas purity. Check the nozzle first. |
Cutting slower always improves quality | Too slow causes overheating and can actually promote oxidation. Speed must be optimized. |
Nitrogen cutting is much slower than oxygen cutting | For the same thickness, nitrogen cutting of stainless is about 30–40% slower than oxygen cutting of carbon steel, but the edge quality is vastly superior. |
Achieving an oxide‑free, silver cut surface on stainless steel with high‑pressure nitrogen is a matter of precise parameter control. The essential elements are:
Nitrogen purity ≥99.995% (Grade 4.5).
Correct nozzle diameter (0.6–0.8 × thickness) and perfect centering.
Gas pressure in the recommended range (12–25 bar depending on thickness).
Negative focus offset (‑0.5 to ‑3.0 mm).
Cutting speed optimized via ramp test (typically 30–40% slower than carbon steel oxygen cutting).
Discoloration (yellow, blue, gray) is most often caused by nozzle spatter or incorrect standoff, not gas purity. Always inspect and clean the nozzle first. Use the tape test to verify coaxiality. Run a speed ramp test for every new material thickness or batch.
A silver cut is not just cosmetic – it indicates that the chromium‑rich passive layer remains intact, ensuring corrosion resistance. With the procedures in this article, you can consistently produce bright, oxide‑free edges on stainless steel.
Q: Can I use compressed air instead of nitrogen for stainless steel cutting?
A: No. Compressed air contains 21% oxygen, which will heavily oxidize the cut edge, turning it dark gray to black. The cut will also have significant dross. Only use compressed air for rough cutting of carbon steel or thin non‑ferrous metals where appearance is not important.
Q: What is the maximum thickness that can be cut with nitrogen on a 3 kW fiber laser?
A: Approximately 6 mm for 304 stainless steel. Thicker than 6 mm will require higher power (6–8 kW) or oxygen assist (which causes oxidation). For 10 mm stainless, use oxygen and accept a black edge, or use a 10 kW+ laser with nitrogen.
Q: How do I know if my nitrogen purity is adequate without a certificate?
A: Cut a 2 mm stainless steel test coupon at optimal parameters. If the cut is bright silver, purity is likely ≥99.995%. If it is yellow or blue, the purity is lower or the nozzle is contaminated. Try a fresh cylinder from a reputable supplier.
Q: Why does my cut sometimes have a brownish tint near the bottom edge only?
A: This indicates incomplete expulsion of molten material, not oxidation. The bottom edge is slightly overheated. Increase cutting speed by 5–10% or increase gas pressure by 1–2 bar.
Q: Can I use a larger nozzle to increase cutting speed?
A: A larger nozzle reduces gas velocity, which may actually decrease speed because the molten material is not ejected as effectively. Use the recommended diameter. For thicker materials, increase both nozzle size and pressure proportionally.
Yihai Laser Cutting Machine Operation Manual. Section 5.1.4: Cutting auxiliary gas – purity table and recommendations for stainless steel; Section 5.1.2: Nozzle coaxiality.
XC3000S Series Laser Cutting System User Manual. Raytools AG. Section on process parameters for stainless steel.
HypCut Laser Cutting Control Software User Manual, Version 1.4. Section 5.7: Focus auto‑test; Section 5.8: Paper test.
ISO 14175:2008. Welding consumables – Gases and gas mixtures for fusion welding and allied processes. (Nitrogen purity grades)
Laser Institute of America. (2020). High‑Pressure Nitrogen Cutting of Stainless Steel. LIA Technical Guide TG‑N2‑2020.
IPG Photonics. (2021). Stainless Steel Cutting Parameters for Fiber Lasers. IPG Application Note AN‑SS‑2021.
