Understanding the Causes of Nozzle Burning in Laser Cutting Operations

In the world of precision manufacturing, laser cutting has rapidly emerged as a go-to technology for a myriad of industries, allowing for intricate designs and high levels of accuracy. However, while laser cutting is lauded for its efficiency, it is not without its challenges. One issue that has garnered attention from professionals in the field is the phenomenon known as nozzle burning. This article delves into the various reasons behind nozzle burning during laser cutting processes, highlighting its implications and potential solutions.

The Role of the Nozzle in Laser Cutting

To understand why nozzle burning occurs, it is essential first to appreciate the role of the nozzle in laser cutting operations. The nozzle serves as a critical component in directing the laser beam and assisting with the delivery of cutting gas, which helps to remove molten material from the cutting area and improve the quality of the cut. However, excessive heat during the cutting process can lead to the melting or burning of the nozzle, resulting in significant interruptions and increased operational costs.

 High Power Settings

One of the primary reasons for nozzle burning is the use of high power settings on the laser cutting machine. Operators often believe that maximizing power will enhance cutting speed and efficiency; however, this can result in excessive heat generation. As the laser beam interacts with the material, the resultant thermal energy can be transferred to the nozzle, leading to thermal degradation. Experts recommend maintaining optimal power settings tailored to specific materials and thicknesses to mitigate this risk.



Improper Focus and Alignment

Another contributing factor to nozzle burning is improper focus and alignment of the laser beam. When the laser is not focused adequately, or if the nozzle is misaligned, the laser energy may not be concentrated effectively on the material. This inefficiency can create additional heat at the nozzle, increasing the likelihood of damage. Regular maintenance and calibration of the cutting system are essential to ensure that the focus and alignment are consistently optimal.

Inadequate Cooling and Gas Flow

Cooling systems and gas flow play pivotal roles in the longevity of laser cutting nozzles. Inadequate cooling can lead to a buildup of heat in the nozzle area, while insufficient gas flow can cause residual molten material to cling to the nozzle, further exacerbating the overheating issue. Operators are advised to regularly check and maintain cooling systems and ensure that gas flow rates are adequate to facilitate efficient cutting and cooling.



Material and Thickness Considerations

The type of material being cut and its thickness are also significant factors contributing to nozzle burning. Denser materials require more energy to cut, which can elevate the risk of nozzle overheating. Additionally, materials that produce excessive smoke or debris can obstruct the nozzle, leading to thermal accumulation. It is critical for operators to consider these aspects when selecting materials, ensuring they choose appropriate settings that balance speed, efficiency, and the health of the nozzle.

 Environmental Factors

Environmental conditions surrounding the cutting operation can also influence nozzle performance. High ambient temperatures and humidity levels can impact the efficiency of cooling systems, leading to an increased risk of nozzle burning. Furthermore, dust and particulate matter in the air can accumulate on the nozzle, impairing its function and leading to heat retention. Maintaining a clean and controlled environment is, therefore, crucial in preventing nozzle-related issues.

 Operator Training and Awareness

Lastly, the level of training and awareness among operators cannot be understated. A lack of understanding of the intricacies of laser cutting and maintenance protocols can lead to mistakes that contribute to nozzle burning. Regular training sessions and workshops focused on best practices in laser cutting can empower operators with the knowledge to recognize and address potential issues before they escalate.

As the technology continues to evolve, so too must the strategies employed by professionals to ensure the longevity and effectiveness of their laser cutting equipment, ensuring that the benefits of this powerful tool are fully realized without the burden of preventable issues.

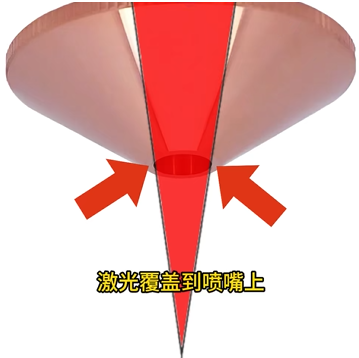

1.In laser processing applications, maintaining an optimal focus height is crucial for achieving precise results. When the focus is set too high, it can lead to several complications, one of which includes the laser beam inadvertently covering the nozzle. This misalignment can significantly impair the efficiency of the process, as the energy distribution becomes uneven.

A high focus may cause the laser to lose its intended impact on the material being processed, leading to suboptimal cutting or engraving quality. Additionally, the nozzle serves a vital role in directing assist gases, which facilitate the cutting process and help in the removal of molten material. If the laser beam obscures the nozzle, not only can it hinder gas flow, but it may also lead to thermal buildup, increasing the risk of equipment damage or component failure.

To achieve optimal results, it is essential to regularly calibrate the focus height and ensure that the laser and nozzle are properly aligned. This will enhance the efficiency of the laser system and ensure high-quality outcomes in various applications, from cutting to engraving. Regular maintenance and monitoring are key to preventing such misalignment issues in laser processing operations.

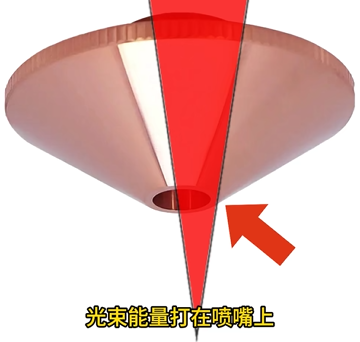

2. The issue of laser coaxiality is critical in ensuring optimal performance in laser processing applications. When the laser beam is not properly aligned with the nozzle, it can lead to significant operational inefficiencies and potential damage to equipment. In this particular scenario, the misalignment results in the beam energy directly impacting the nozzle, which is not designed to withstand such direct energy exposure. This misalignment not only affects the quality of the cut or weld being performed but also poses a risk of overheating the nozzle, leading to premature wear, potential distortion, or even catastrophic failure.

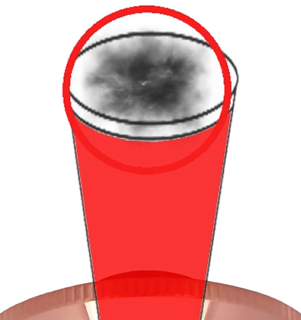

3. The presence of contamination on the lens significantly impairs the optical performance of the laser system. When the lens is dirty, it scatters and absorbs part of the laser beam, which results in a loss of focus and a degradation of beam quality. Consequently, the laser may not converge as intended, leading to a wider and less coherent output. This lack of focus can cause the laser to radiate erratically towards the nozzle, potentially damaging the nozzle itself or affecting the overall operation of the system.

4. The nozzle is deformed by collision and friction, resulting in the nozzle concentricity being unqualified and blocking the laser

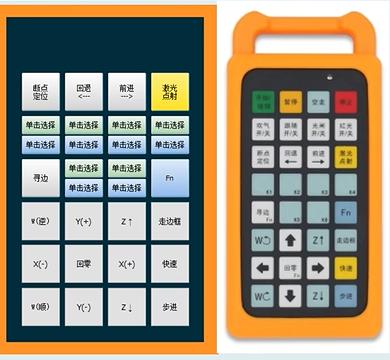

Quickly understand the functions of the wireless handheld box

1. Edge search means to perform edge search before walking the frame, and the software will record the edge search results to determine the placement of the plate.

2. Walking the frame means that the laser head will walk a rectangle along the outer frame of the graphics to be processed, which is convenient for determining the approximate size and position of the processed plate.

3. Walking without cutting, simulate all cutting routes to conduct a comprehensive inspection and simulation of the overall processing process.
