200W 300W Suitcase Fiber Laser Cleaning Metal Machine To Remove Rust And Paint 100 Wattlaser Cleaner Hand-Held Rust Clean

The laser cleaning technology refers to the use of high-energy laser beams to irradiate the surface of the workpiece to instantly evaporate or peel off the dirt, rust spots or coatings on the surface, and effectively remove the surface attachments or coatings of the cleaning object at high speed, so as to achieve a clean process.
Availability:
Quantity:
  • YH-TC120W

  • YIHAI

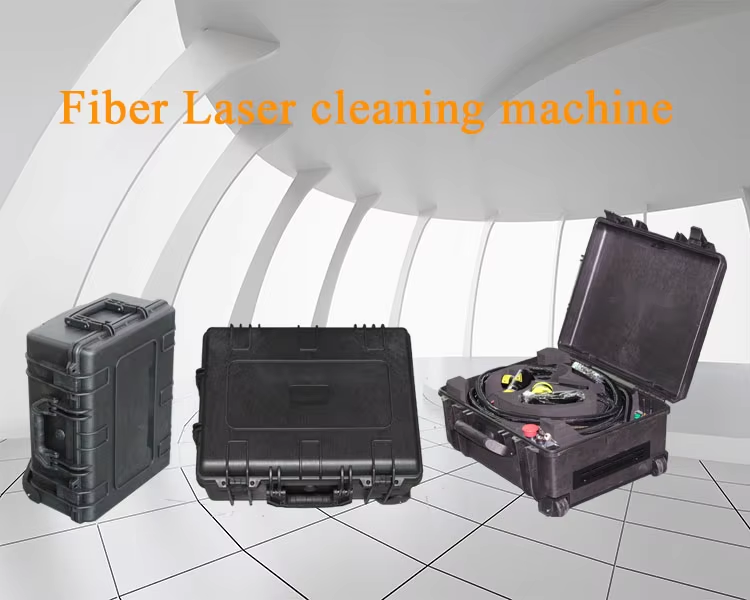

详情图


What is fiber laser cleaning machine Application?

YH Laser cleaning machine is a high-tech product of the new generation of surface cleaning. It has the advantages of easy to control, easy automatic integration, no chemical reagents, suitable surface cleaning, high cleaning cleanliness and high accuracy, efficient and environmental protection, safe and reliable, almost no damge substrate surface, which can solve a variety of problems that cannot be solved by traditional cleaning.



Machine Configuration

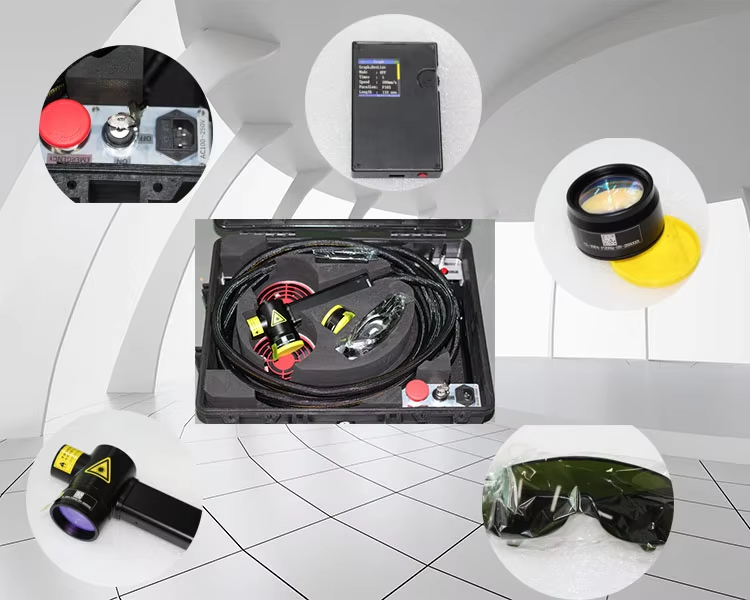

配置图

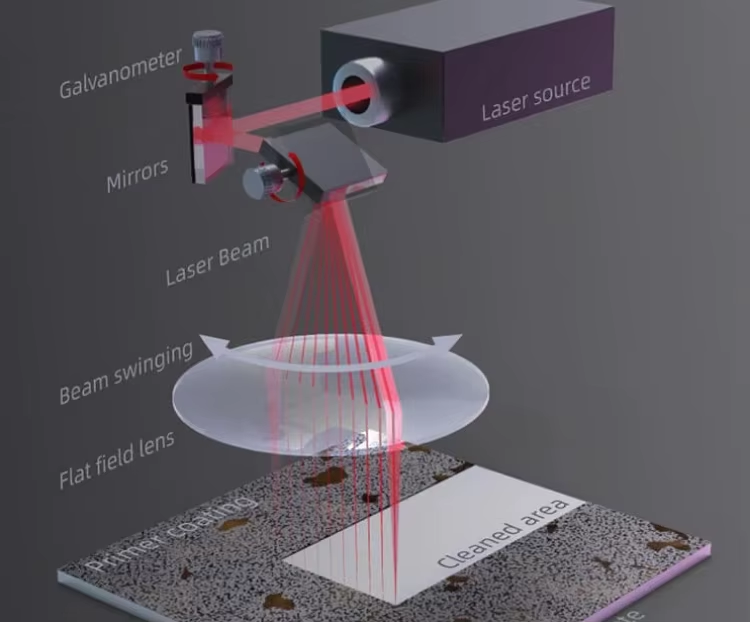

细节图


Pulse Laser Cleaning Machine Configurations:

---Fiber laser JPT 200W laser source
---Guoyuan Control system
---Guoyuan handheld laser head
---5m Fiber able
---3m Power wire
---Safety goggles
---Air cooling
---2* laser protective lens
---220V, 50/60HZ, 1 phase

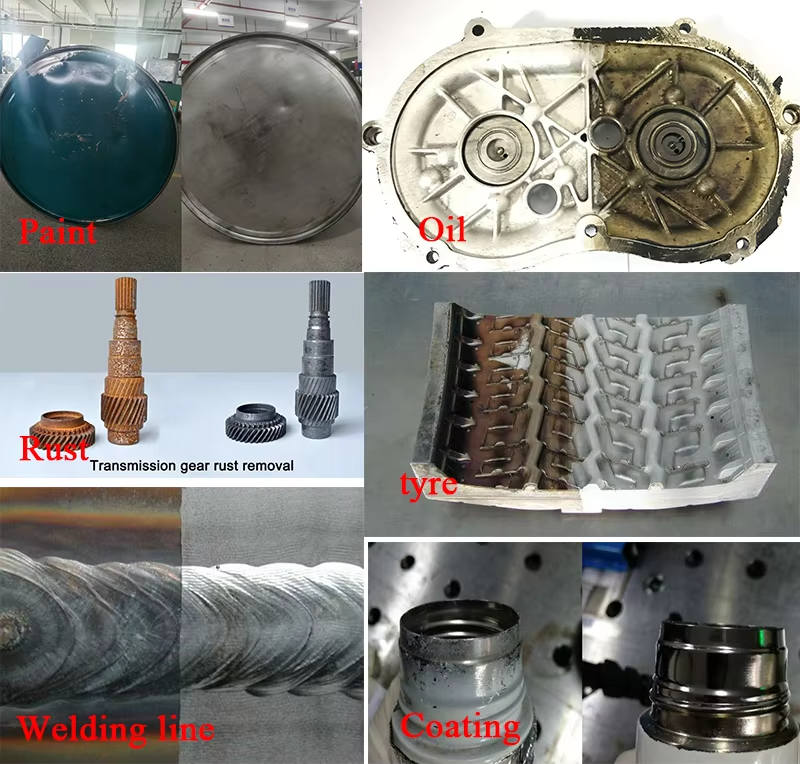

Application Examples



样例图


Handheld fiber laser cleaning machine application:

Metal rust, metal particles, dust, etc., the application effects include: rust removal, paint peeling, oil removal, cultural relics repair, glue removal, decoating, decoating.



Product Configuration



配置图

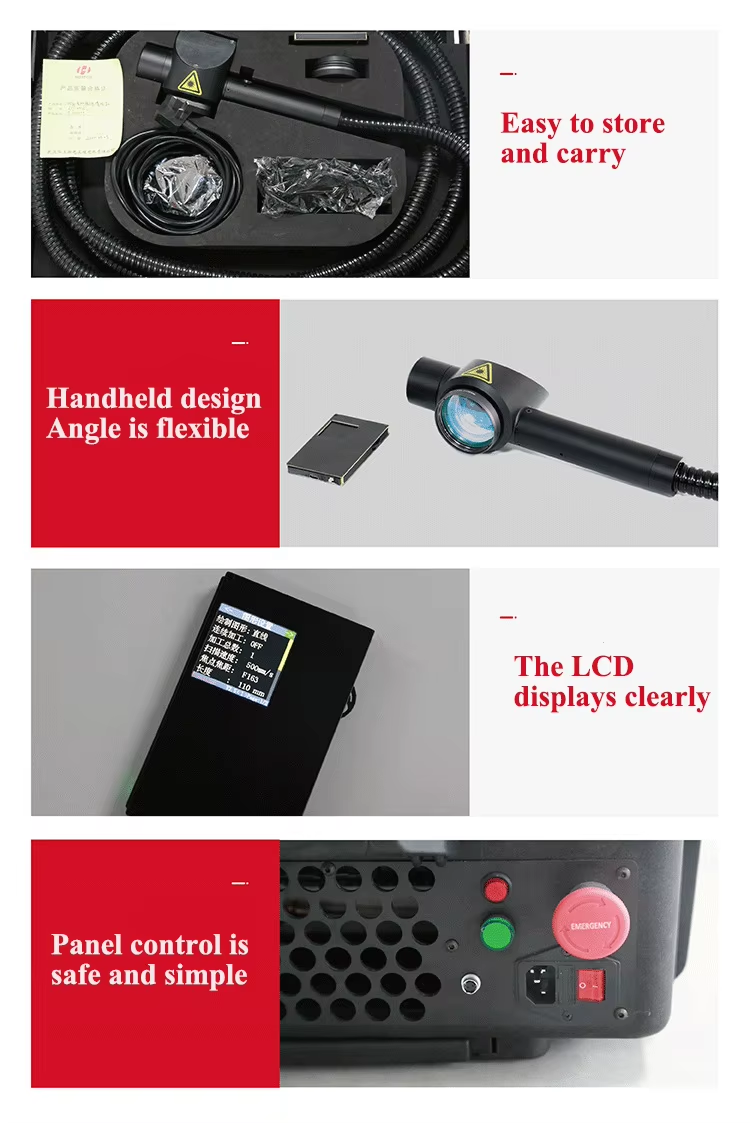

配置图2


Our service


世界


Laser cleaner Service

1. Our online service is available 24/7 with free technical support. If you have any questions, please feel free to ask.

2. The machine has been calibrated before delivery and comes with an operation disk.

3. We provide manual instructions, a CD with guiding videos for software installation, operation, and machine maintenance.

4. We ensure that every customer receives their machine quickly and in top quality.

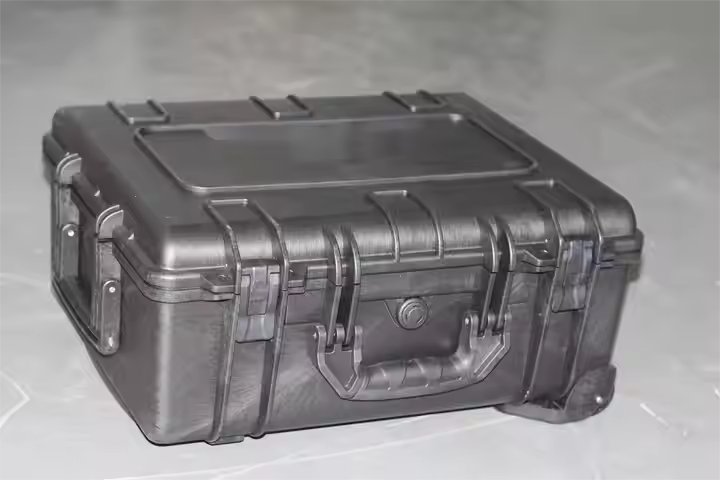

Package:



包装


包装2


Laser cleaner Packing:
(1)Inner: plastic stretch film and white foam. Plastic stretch film winding equipment for Moisture Resistance. White Foam filling is used to tighten the laser.

(2)Middle: small pieces of wood and screws.
(3)Outside: standard export wooden case. Finally, label the destination country and product number.


FAQ

Q: What customized services you provided?
A: Yihai is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.

Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and via this method, you could pay by T/T, L/C, Credit Card, etc.

Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.

Q: How long is the delivery time?
A: It depend on the machine mode you require, and which country you from. About the production time,
 Machine only need 15 works day. About the shipping time, it depend on the flight time.


No.
Item
parameters
1
Machine model
HS-C200W
YHC-300W
2
Max laser power
200W
300W
3
Laser type
Pulse fiber laser source

4
Source brand
JPT

5
Laser medium
Fiber

6
Laser wavelength
1080nm
1500W
7
Capacity control
10--100%

8
Laser cleaning frequency
1-3000KHz

9
Maximum single-pulse energy
5MJ

10
Pulse length
13--500ns

11
Instability of energy
<2%

12
Beam Divergence
≤1.5mrad

13
Cleaning width
1-100mm

14
Cleaning distance
F=200mm

15
Cleaning mode
5

16
Continue working time
16hours

17
Fiber optical length
5 m standard
6.5-8(m2/h)
18
Power Consumption
≤1.5KW

19
Power required
AC110/220V±10% 50HZ/60HZ

20
Consumable
Protection glass/lense

21
Working temperature
55°F(13°C)-82°F(28°C)

22
Working Humidity
5%-75%

23
Cooling-down method
Air

24
Net weight
20.5KG

25
Package size and weight
580*500*370mm 25KG
