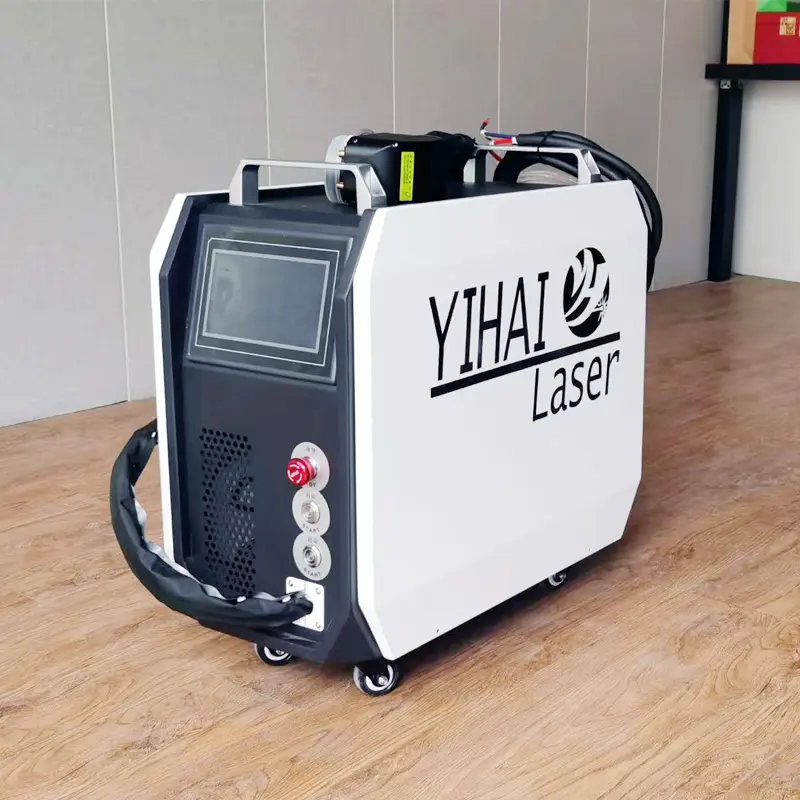

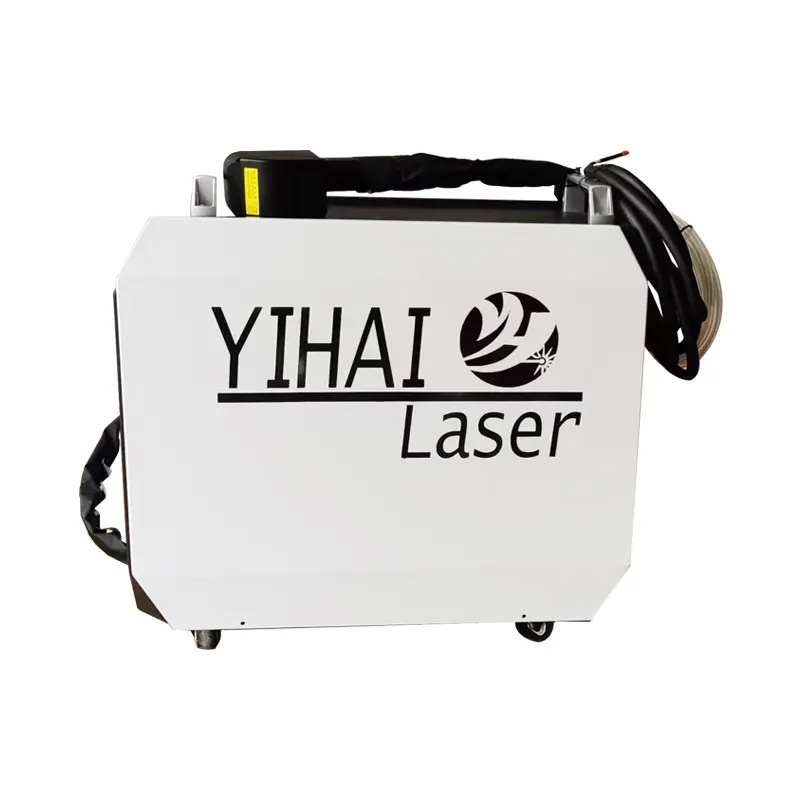

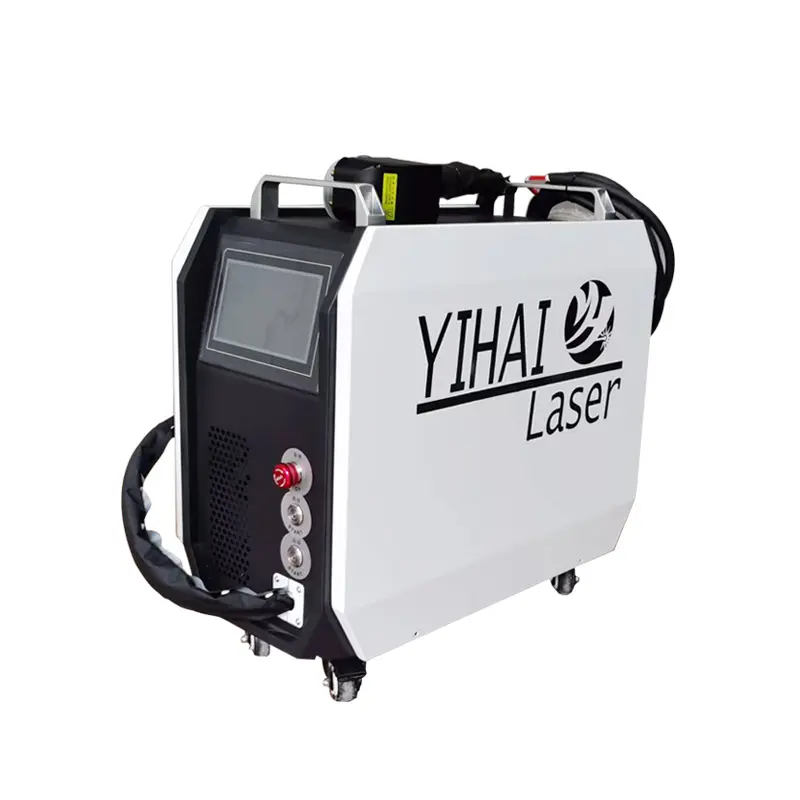

100w 200w 300w Small Pulse Fiber Laser Rust Removal Cleaning Machine Supplier for Wood Paint Stone Metal Lazer Cleaner

This is a handheld portable pulse laser cleaning machine, small and light, easy to carry, you can go out to different construction sites, power 100w,200w, 300w,500w, you can choose different control systems, simple operation. Mainly used in rust removal, paint removal, glue removal, coating removal and plating removal. It’s suitable for cleaning the rust layer and thick paint layer, as well as surface roughening, welding seam cleaning and other process links, with extremely high efficiency. Widely used in aviation, ships, cultural relics protection, automobile peripherals, food industry, rails, rubber molds and other industries.
Availability:
Quantity:
  • YHC-300W

  • YIHAI

详情图


LASER CLEANING MACHINE

Pulse laser cleaning machine is a device that uses pulse laser technology to clean surfaces. It has the advantages of high efficiency, environmental protection, and no chemical pollution. Its working principle is to achieve the cleaning effect through the interaction between the laser beam and the surface of the material, and to use the physical and chemical effects caused by the laser energy being absorbed by the contaminants on the surface of the material.
It can be used to clean organic pollutants, can also be used to clean inorganic substances, including metal rust, metal particles, dust, etc., the application effect includes: rust removal, paint removal, oil removal, cultural relics restoration, degumming, coating,plating.laser rust removal machine.

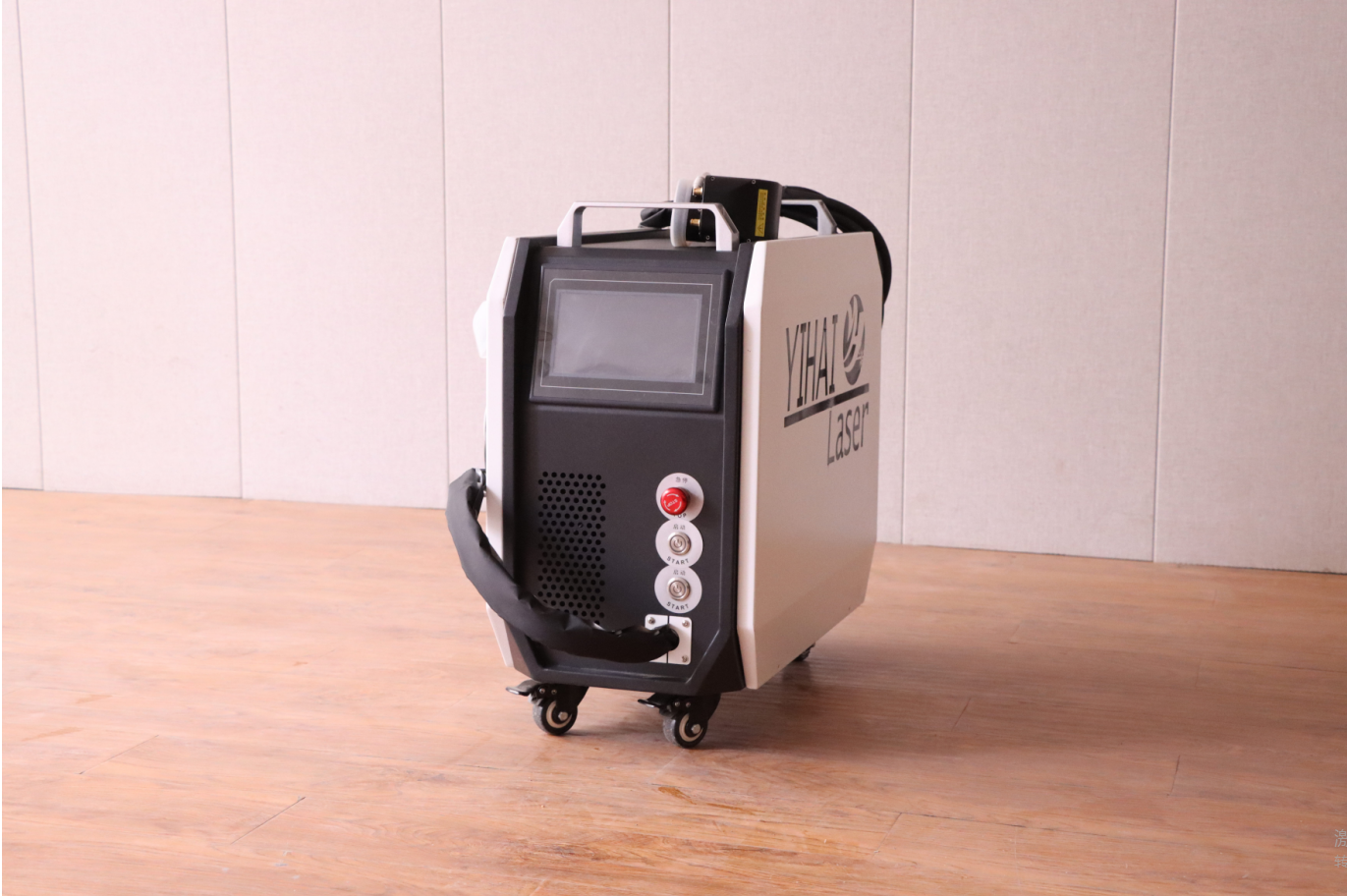

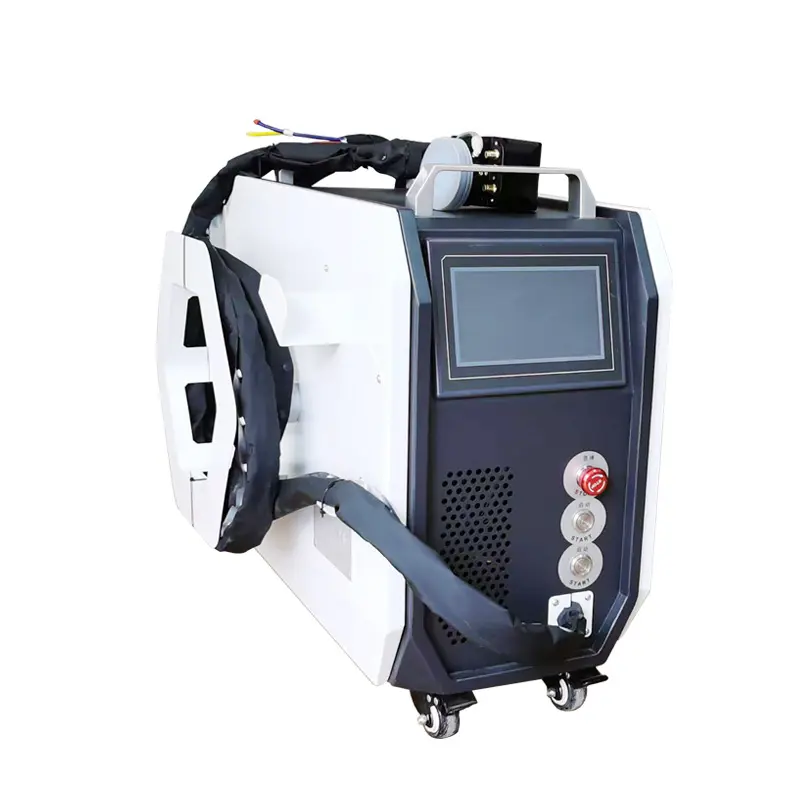

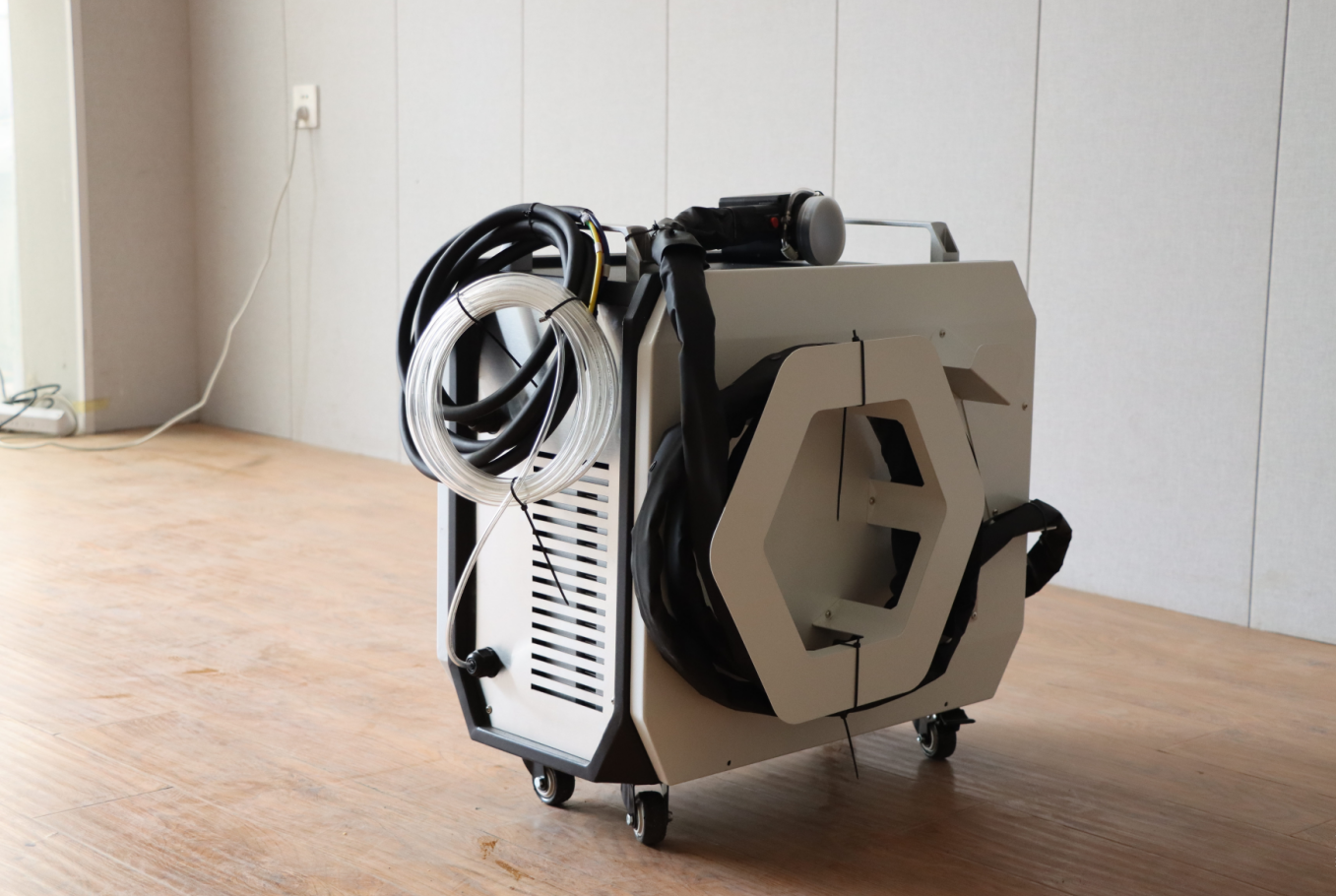

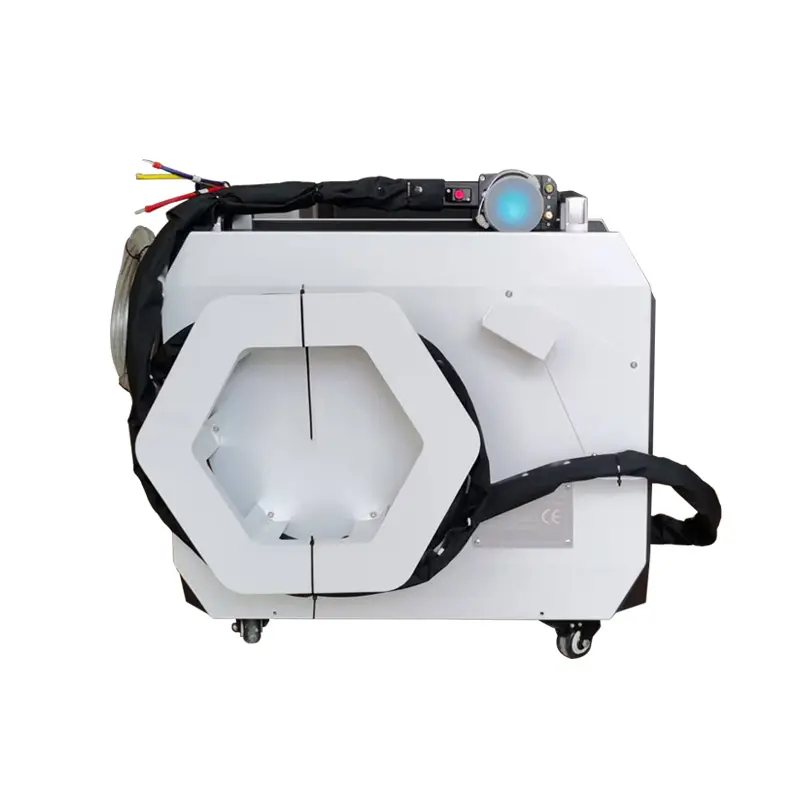

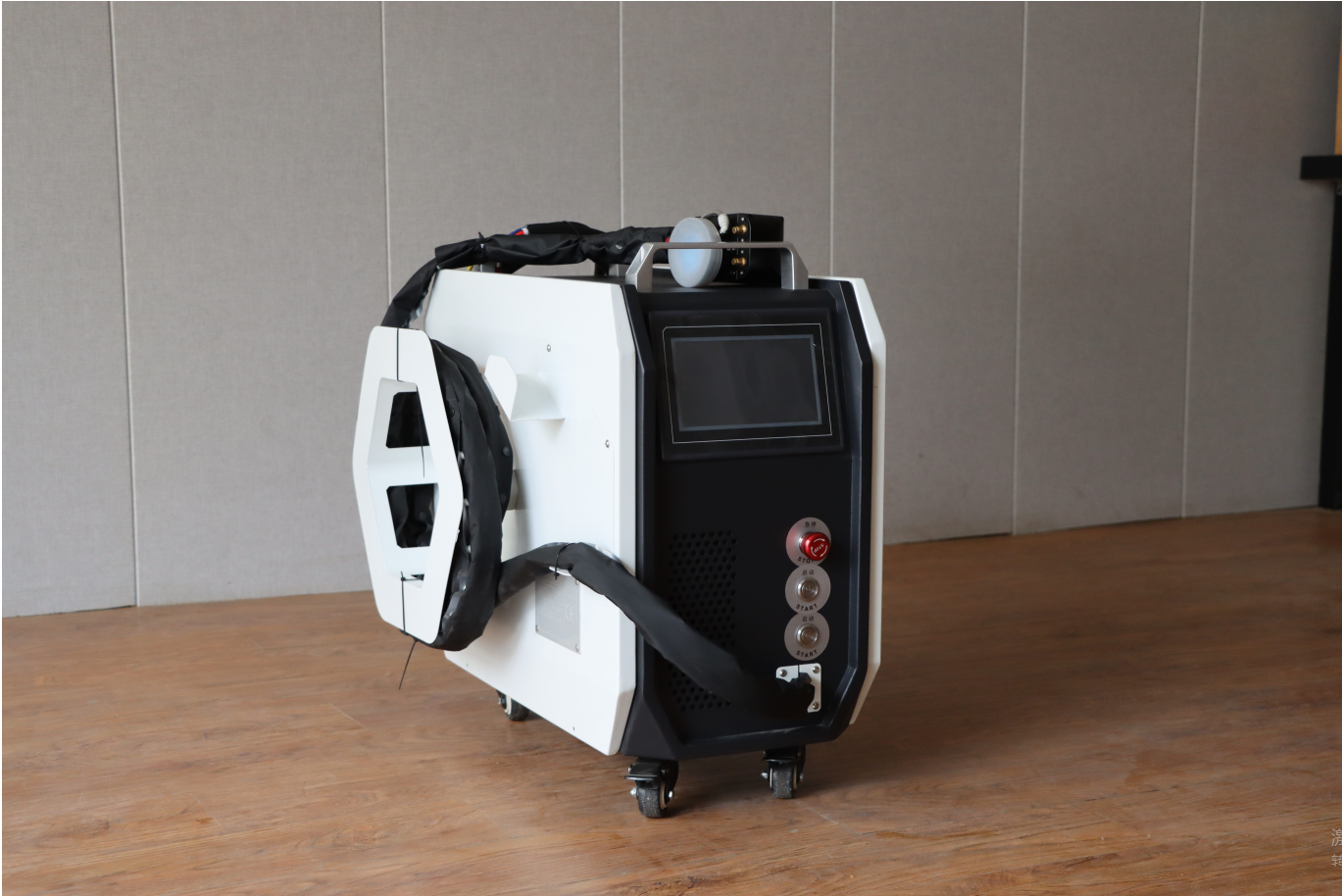

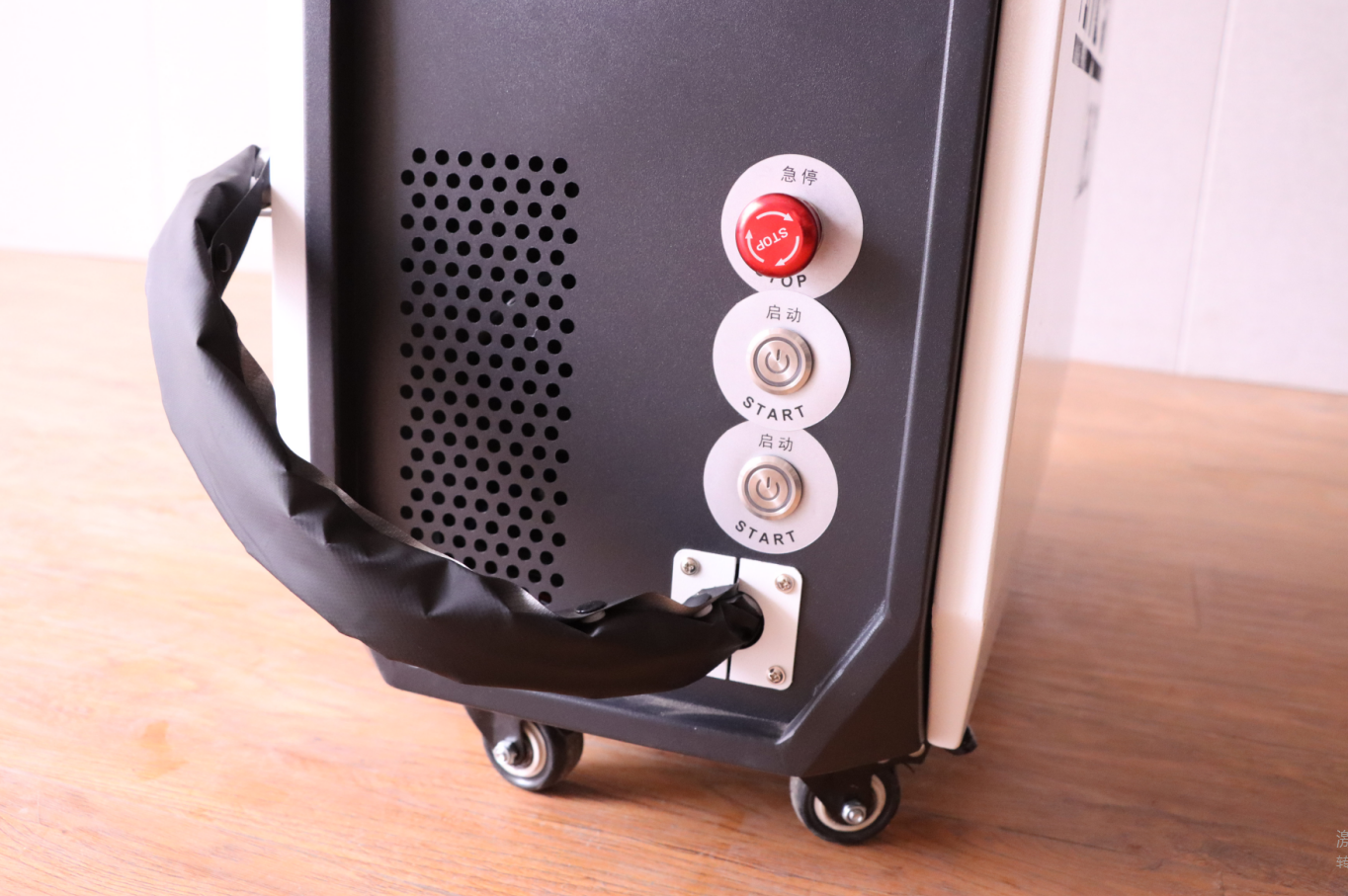

Product display


场景图5


场景图1 场景图2
场景图3 场景图4



Machine Features
1. Non-contact cleaning, does not damage the parts substrate.
2. Precise cleaning, which can achieve selective cleaning of precise location and precise size.
3. No chemical cleaning solution, no consumables, safe and environmentally friendly.
4. The operation is simple, just power on, and it can be hand-held or cooperated with the manipulator to realize automatic cleaning.
5. The cleaning efficiency is very high, saving time.

6. The laser cleaning system is stable and requires almost no maintenance.




Product Configuration


激光器 系统
JPT Pulsed laser source.
JPT pulse laser, laser power 100W/200W/300W/500W optional, good laser characteristics and pulse shape control ability. High pulse energy and uniform output spot energy distribution.
Handheld laser cleaning control system.
Handheld laser cleaning control system,Digital design, simple settings, and clear working status.
手持 按钮

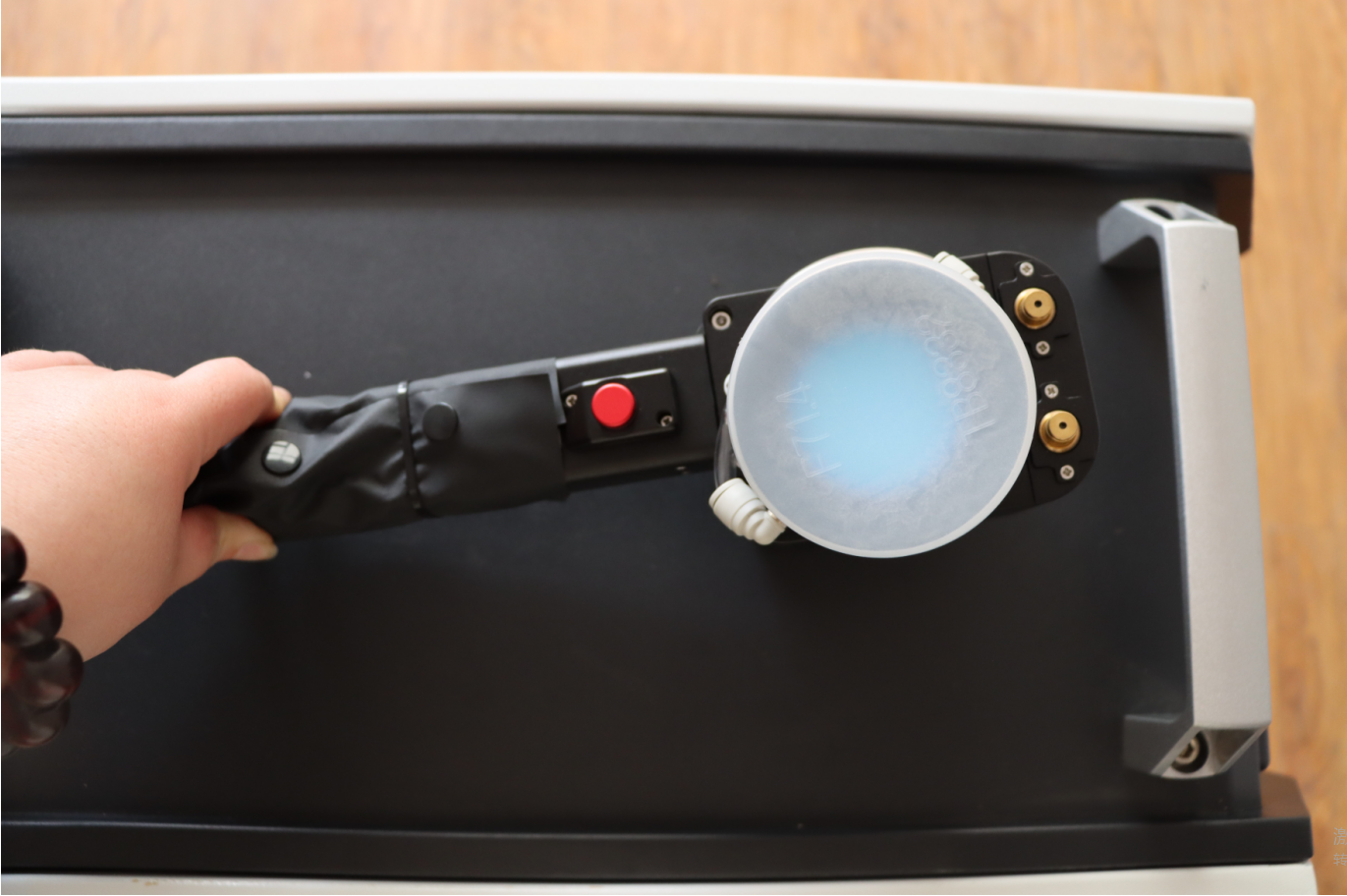

Handheld cleaning head.
The cleaning head weighs 0.85KG and its ergonomic design makes it easier to operate for a long time. It can scan circular mode, sine mode, double helix mode, free mode and ring.

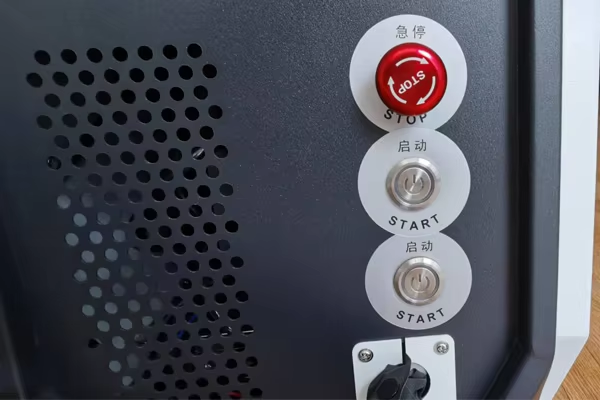

Smart control buttons.
The interface is clear and concise, easy to operate and fast in response.

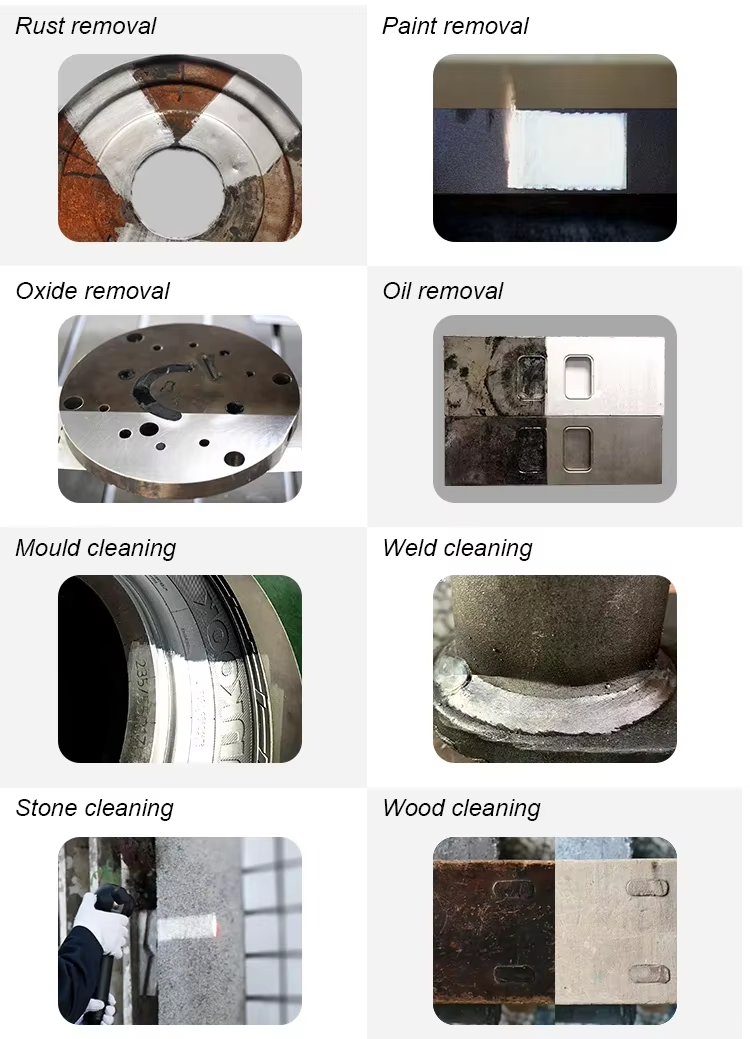

Sample display



对比2 拷贝


样例1

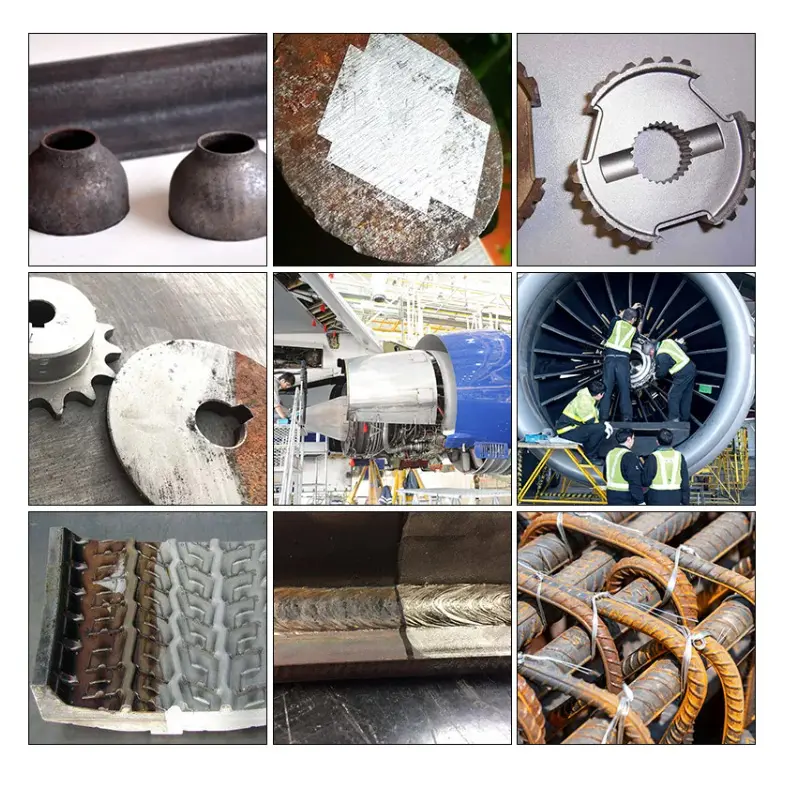

The pulse laser cleaning machine mainly cleans paint, coatings, oil stains, stains, rust removal, etc. The pulse laser energy is low and will not damage the surface of the substrate. It can be used for surface cleaning of precision parts, such as molds, cultural relics, etc., and can also clean stones and wood. surface.



Packaging


包装



Laser Cleaning Machine Packing And Delivery

Payment: 100% T/T or 30% pre T/T 70% before delivery

Port of Loading: Qingdao, China
Delivery Time. within 20 days from the date of receiving the advanced payment
Min. Order Quantity: 1 set
Packing: Plywood
Warranty. 2years



About Us



展会


Jinan Yihai cnc router machinery CO.,LTD is established in 2009, Yihai Laser is a professional manufacturer and exporter that is concerned with the design, development and production of laser machines, located in Jinan City, Shandong Province, owns more than 500 square meters of researching and officespace, more than 32000 square meters factory. All machines, passed the European Union CE authentication, American certificate and are certified to ISO 900. Products are sold to USA,Canada, Australia, Europe, South east Asia, Africa etc, more than 80 countries and areas, and supply OEM service for more than 30 manufactures. We have over 100 employees, exported over than 80 countries. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. 3 years warranty make you have no any trouble.



No
Item
Data
1
Laser source
Fiber
2
Laser Power
100W/200W/300W
3
Fiber cable length
1.5-3 M
4
Laser Wavelength
1064nm
5
Pulse Energy
1.5 mJ
6
Pulse frequency
1-2000KHz
7
Scanning speed
0-7000mm/s
8
Cooling
Air cooling
9
Dimension
500*300*650 mm
10
Weight
32Kg
11
Beam width
10-100mm
15
Optional
Manual
16
Temperature
5-40 ℃
17
Voltage
Single Phase AC 220V, 50/60HZ
