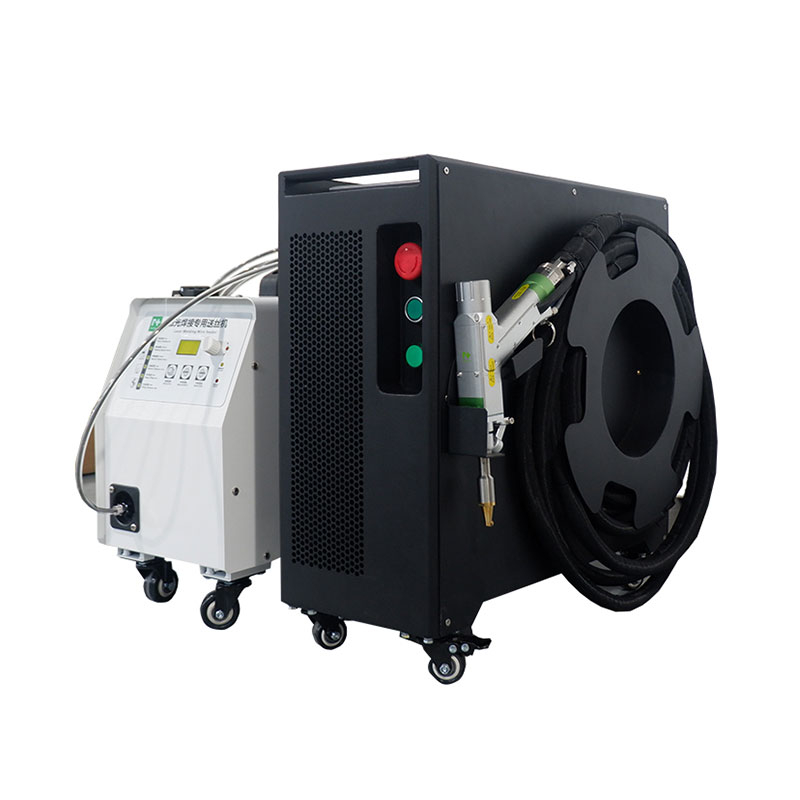

Air Cooling Small Laser Handheld Welding Machine Suppliers Mini for Welding Hoy for Stainless Steel Metal Aluminium High Speed

3 In 1Handheld Laser Mobile Cutting Welding Cleaning Machine
1. It can weld a variety of metal plates and pipes, mainly suitable for welding stainless steel, gold, silver, copper, galvanized
sheet, aluminum sheet, various alloy sheets, rare metals and other materials.
2.Copper alloy surface patina cleaning, steel pipe
surface oxide and pollutant cleaning, rail derusting.
3. Widely used in advertising signs, hardware products, auto parts, craft
gifts and other industries, can be used for welding carbon steel, stainless steel, titanium, aluminum and other metal materials
Availability:
Quantity:
  • YH-W1000/1500/2000/3000

  • YIHAI


详情图




3 In 1Handheld Laser Mobile Cutting Welding Cleaning Machine

1. It can weld a variety of metal plates and pipes, mainly suitable for welding stainless steel, gold, silver, copper, galvanized

sheet, aluminum sheet, various alloy sheets, rare metals and other materials.

2.Copper alloy surface patina cleaning, steel pipe

surface oxide and pollutant cleaning, rail derusting.

3. Widely used in advertising signs, hardware products, auto parts, craft

gifts and other industries, can be used for welding carbon steel, stainless steel, titanium, aluminum and other metal materials

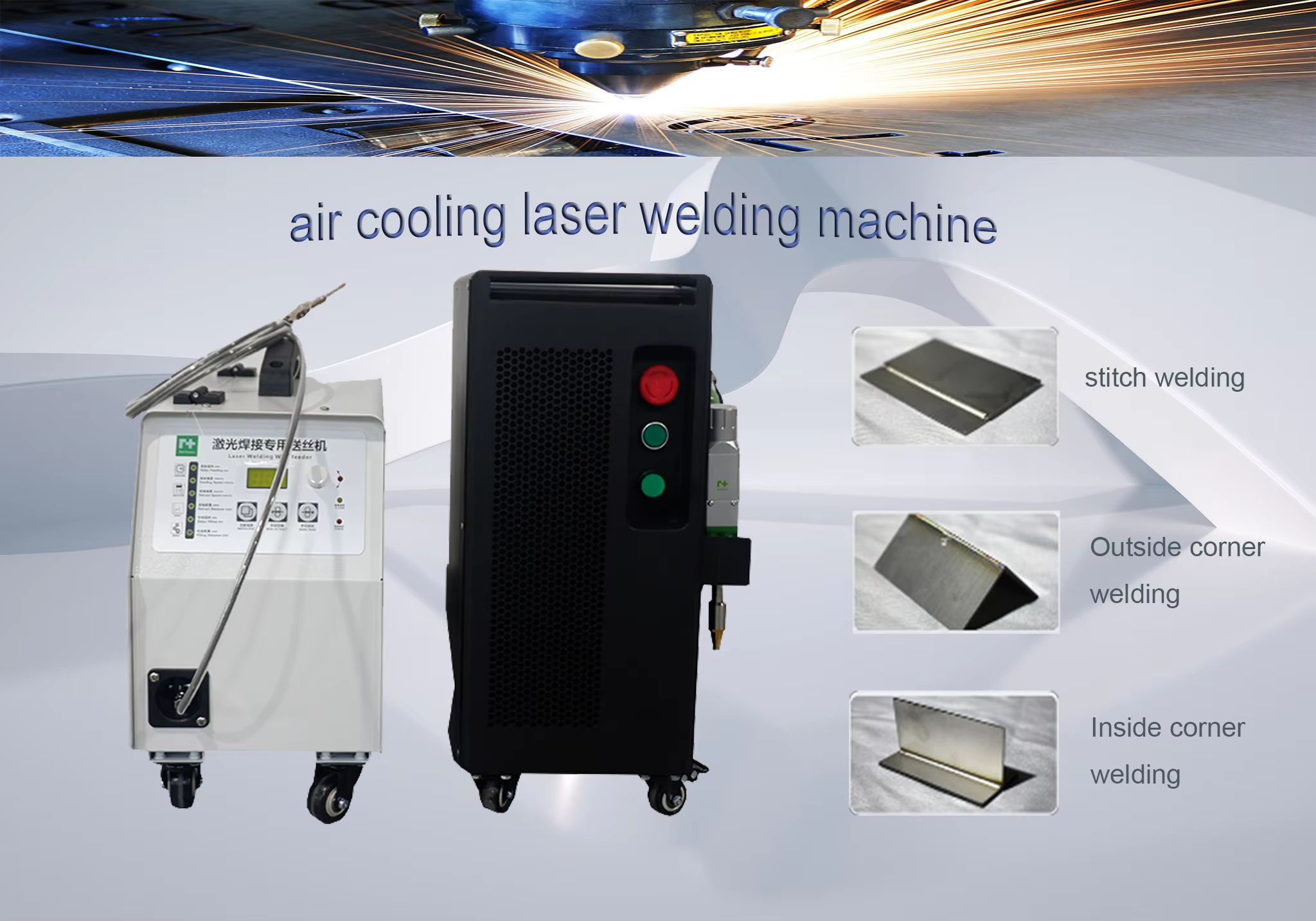

详情图2


Advantages of air-cooled laser welding machine

  1. Low power consumption: Compared with traditional air-cooled laser welding machines, air-cooled laser welding machines have low power consumption under power classification and can save energy consumption.

  2. Good stability: The air cooling technology used in air-cooled laser welding machines can effectively reduce the temperature and prevent device damage caused by high temperatures during the welding process, thus improving the stability of the equipment.

  3. Easy to operate: The air-cooled laser welding machine has an intelligent control system that can automatically adjust the beam and can also be controlled remotely. The interface is simple and easy to understand, making it very convenient to operate.



Product Configuration


配置1‘ 配置2

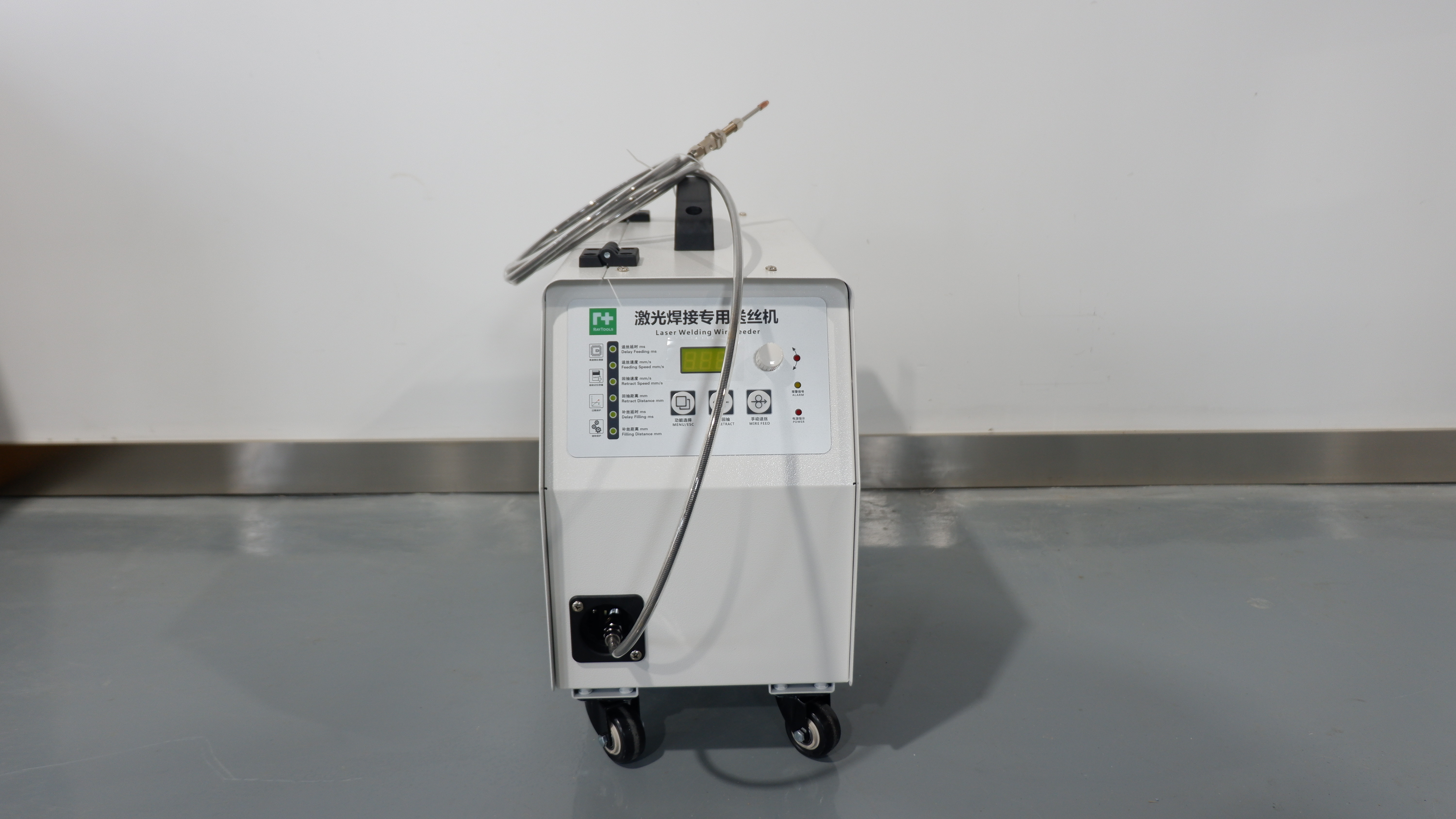

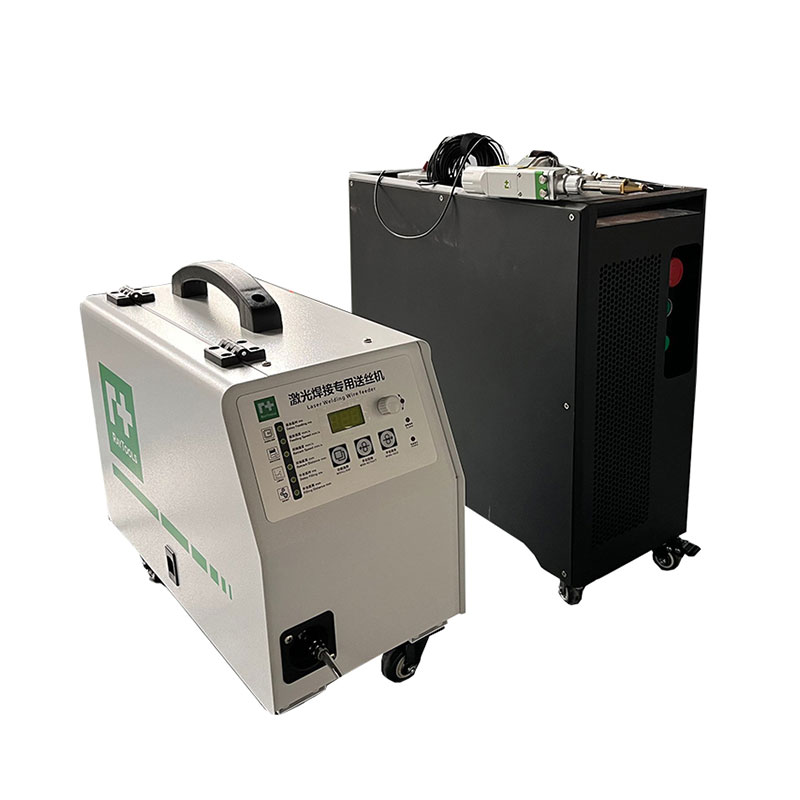

Auto wire feeder

Automatic wire feeder with independent control to match the speed of hand-held laser welding: wire diameter specification:0.8MM,1.0MM, 1.2MM,1.6MM,2.0MM

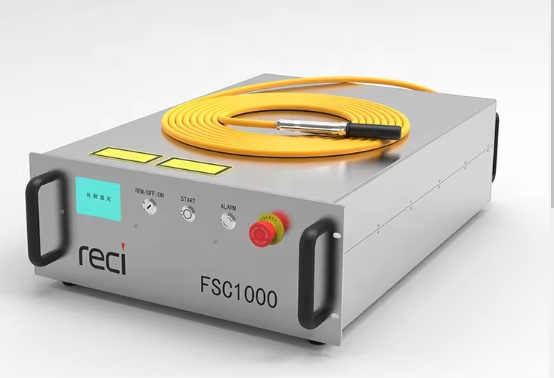

Max/Raycus/Reci/IPG Laser Source

top brand fiber laser source Max, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.
配置3 配置4 配置5

handheld gun

Au3tech handheld gun, can adjust parameter on the gun, and support multi languages.
For cleaning and welding/cutting, only need to switch the working model, and change the focal lens.

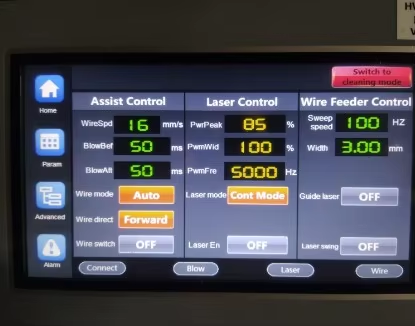

Control panel

Automatic wire feeder with independent control to match the speed of hand-held laser welding: wire diameter
specification:0.8MM,1.0MM, 1.2MM,1.6MM,2.0MM

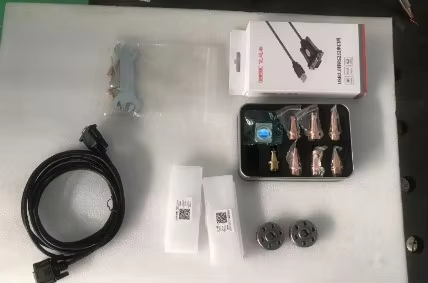

Accessories

A set of welding nozzle5 pieces protective lens

Welding and cleaning focal lens
necessary cable

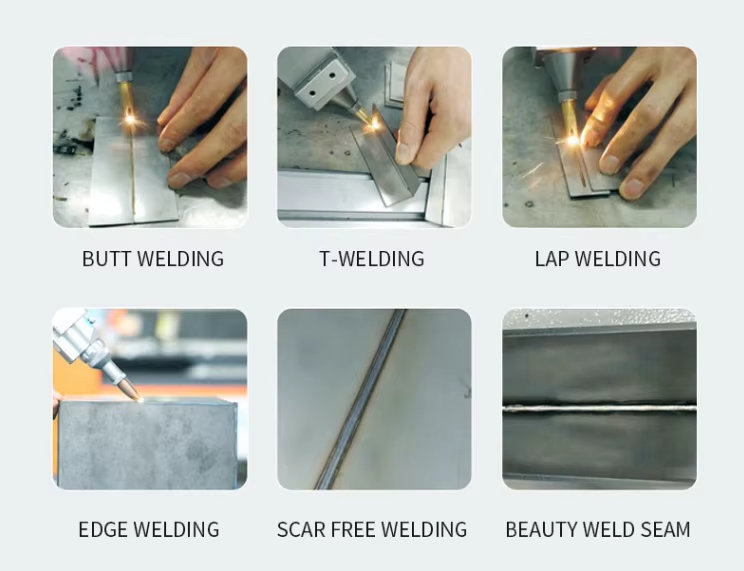

Application Industry and Samples

样例1


样例2

样例3


Handheld laser welding machine Equipment characteristics :

1. Stainless steel , carbon steel , aluminum , copper welding

2.easy operation , convenience and low maintenance cost .
3.Continuous welding mode , without post polishing



Why Choose Us


证书

Established in 2009, Jinan Yihai Laser Technology Co., Ltd. is a leading manufacturer and exporter specializing in the design, development, and production of laser machines. Located in Jinan City, Shandong Province, we have a team of over 100 employees and have successfully exported our products to more than 80 countries worldwide.

At Yihai Laser, we take pride in our well-equipped facilities and stringent quality control measures implemented at every stage of production. This ensures that our customers receive top-notch products that meet their expectations and result in total satisfaction. Additionally, our products come with a 2-year warranty, providing our customers with peace of mind and assurance in their purchase.

With a commitment to excellence and customer satisfaction, Yihai Laser continues to innovate and improve our products to meet the evolving needs of our customers. We strive to provide reliable and high-quality laser machines that deliver exceptional performance and value.

Name
Handheld Fiber Laser Welding Machine
Laser power
MAX 1000W/1500W/2000W/3000W
Laser wavelength
1070-1090NM
Cable length
10M
Way of working
Continuous / modulation
Welder speed range
400-500mm/s
Cooling water machine
Industrial constant temperature water tank, with over temperature, flow, water level and other alarm functions
Working ambient temperature range
0~45℃
Working environment humidity range
<70%no condensation
Weld Thickness Recommendations
0.3-8mm
Weld Gap Recommendations
≤1.5mm
Voltage
220V
Handheld laser welding head weight
≤1kg
Laser source life
100000 hours
aiming and positioning
Red light pointer
Self-locking function
Automatic light lock to ensure operator safety
Weld joint form
Butt, lap and fillet joints
Spot width adjustable range
0.2-5MM
Weld quality
Weld penetration, small deformation of the workpiece, beautiful weld, no welding slag, no welding defects, no back penetration phenomenon in 2mm stainless steel plate welding (no burn and discoloration on the back of the weld, consistent with the color of the base metal)
Automatic wire filling function (optional)
Automatic wire feeder with independent control to match the speed of hand-held laser welding: wire diameter specification: 0.8MM,
1.0MM,1.2MM,1.6MM
Laser welding head type
Shake the dual galvo mirror left and right
